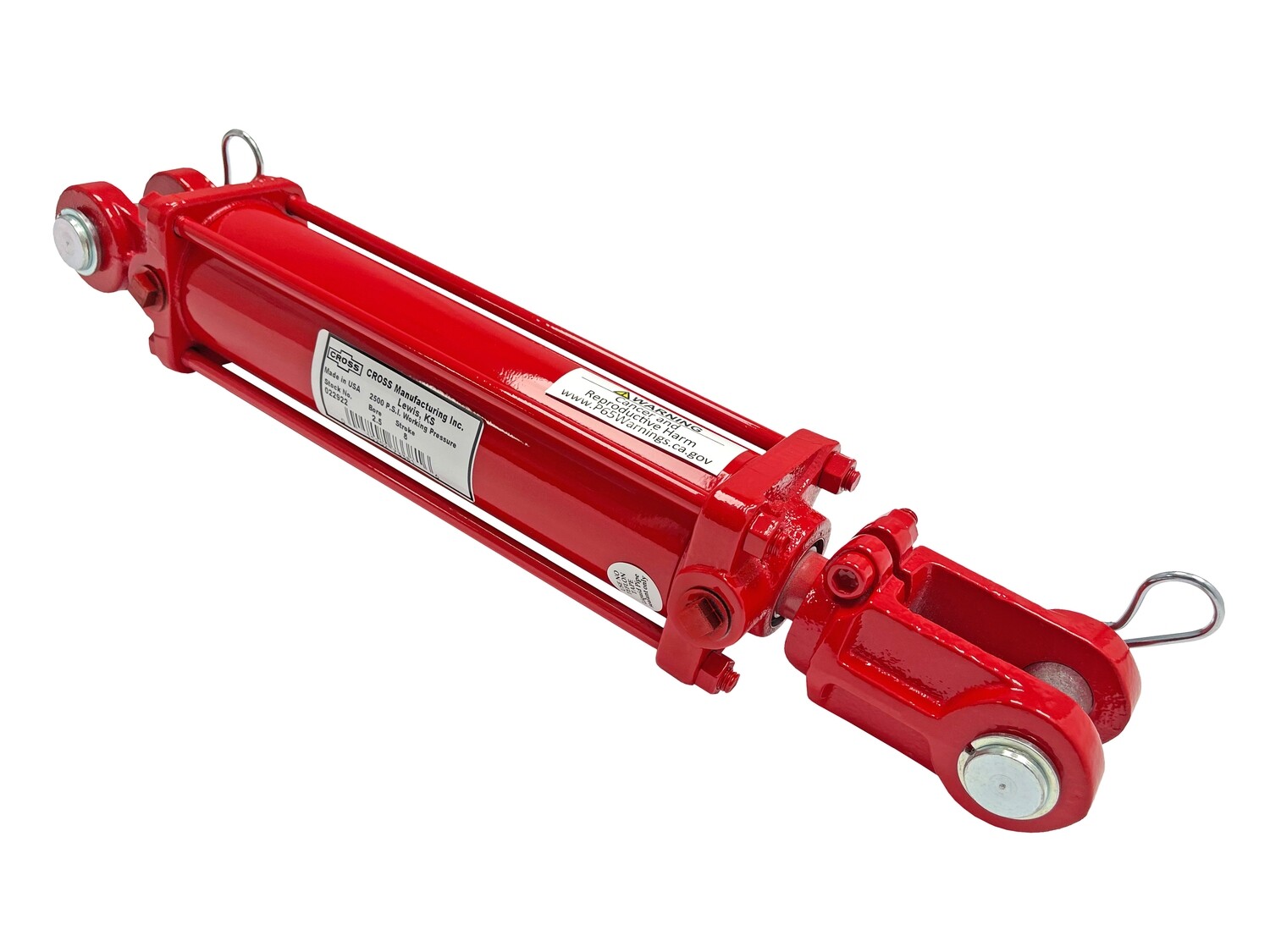

TX2500 Tie Rod Cylinder, 2"X16"

TX2500 Tie Rod Cylinder, 2"X16"

The TX2500 Tie Rod Hydraulic Cylinder (20TX16) delivers dependable hydraulic force for longer travel applications, featuring a 2" bore, 16" stroke, and durable steel construction rated to 2500 PSI. With a hard chrome-plated rod, heavy-wall tubing, and high-strength tie rods, it’s built for long service life in harsh conditions, shock loads, and high-cycle use.

Country of Origin: Varies by production batch

Key Features / Specifications

• Brand / Series: TX2500
• Model / SKU: 20TX16
• Manufacturer Part Number: 648505
• Product Type: Tie rod hydraulic cylinder
• Cylinder Bore Size: 2″
• Stroke Length: 16″
• Rod Diameter: 1-1/8″
• Port Size: 3/8″ NPT
• Pressure Rating: 2500 PSI
• Retracted Length: 26-1/4″
• Extended Length: 42-1/4″
• Material: Steel
• Color: Red
• Rod / Shaft: High-strength hard chrome-plated shaft for extended life and improved sealing
• Tube: Skived and burnished heavy-wall steel tubing for longer seal and cylinder life
• End Caps: High-grade ductile iron caps with drilled oil passages and increased bearing surface for shock/side loads
• Tie Rods: High-tensile steel tie rods for durability at high pressure
• Piston: Precision-machined ductile iron piston for a forgiving bearing surface and extended life
• Piston Nut: Heavy-duty steel, torqued, self-locking piston nut for high-cycle loading

Ideal For

• Hydraulic equipment needing a longer-travel 2″ bore / 16″ stroke cylinder
• Applications requiring 2500 PSI pressure capability
• High-cycle work where a chrome-plated rod improves durability and sealing
• Systems exposed to shock and side loads needing ductile iron caps and strong tie rods
• Farm, shop, and industrial hydraulic repairs and builds
