TX2500 Tie Rod Cylinder, 2"X24"

TX2500 Tie Rod Cylinder, 2"X24"

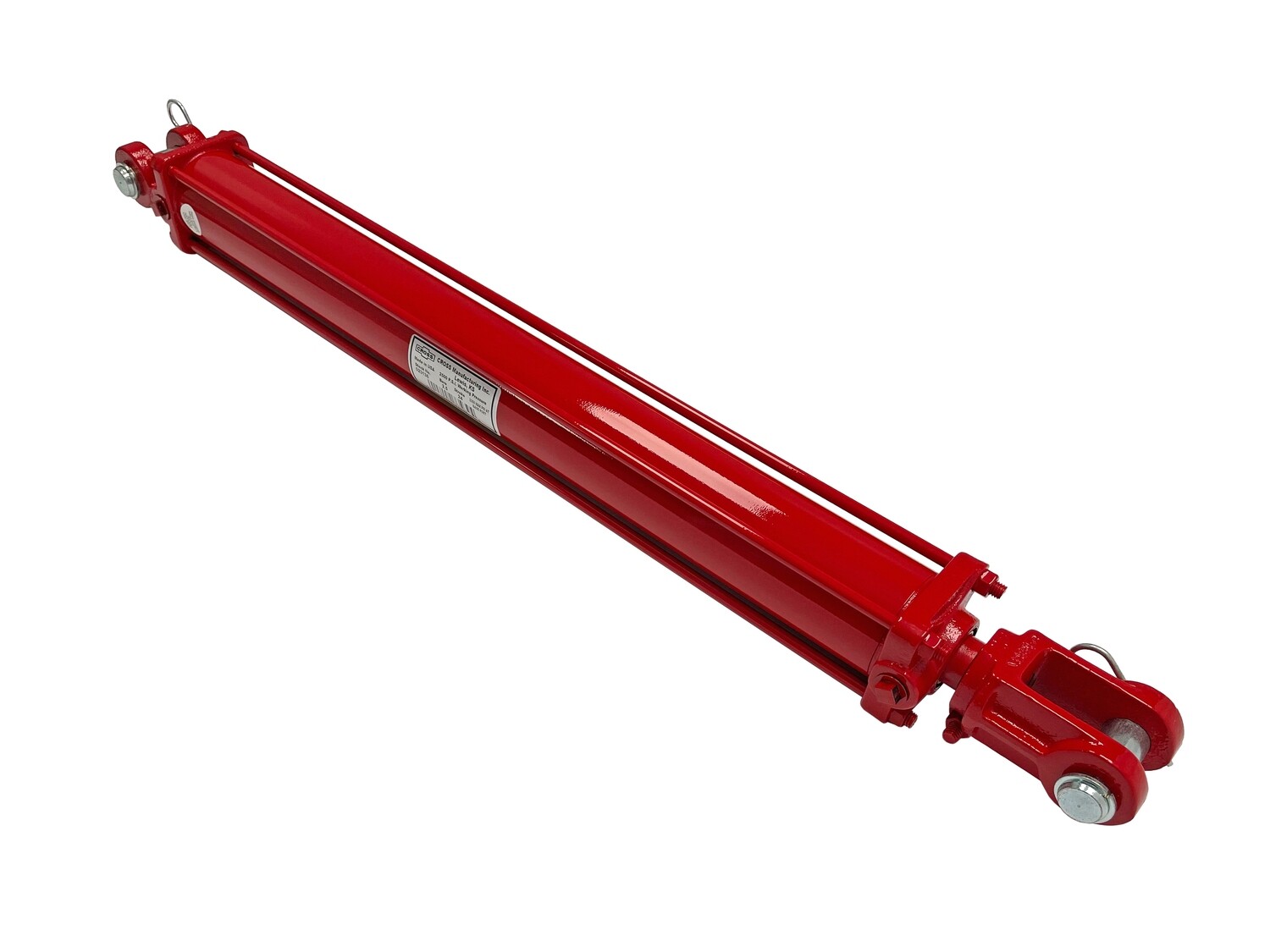

The Lion Hydraulics TX2500 Tie Rod Cylinder (2" x 24") is a value-driven, high-quality hydraulic cylinder built to deliver dependable performance with weight advantages over conventional tie-rod designs. Developed from decades of North American cylinder engineering experience, the TX series is made for durability in demanding equipment applications, and this model includes pins and cotters to streamline installation. With a 24" stroke and long pin-to-pin range, it’s a solid fit for repairs or new builds where consistent, leak-resistant hydraulic performance is required.

Country of Origin
Varies by production batch

Key Features / Specifications

• Brand: Lion Hydraulics
• Product Line / Series: TX2500
• Cylinder Type: Tie Rod Cylinder
• Manufacturer Part Number: 20TX24
• Bore (ID): 2"
• Stroke: 24"
• Shaft Diameter: 1-1/8"
• Port Size / Type: 3/8" NPT
• Pin-to-Pin (Center-to-Center) Retracted: 34-1/4"
• Pin-to-Pin (Center-to-Center) Extended: 58-1/4"
• Overall Length (as stated): Retracted 34-1/4", Extended 58-1/4"
• Included Hardware: Pins and cotters included for easier installation
• Ship Weight: 23.0 lbs
• Typical Working Pressure (estimated): 2,500 PSI class (TX2500 series; confirm system requirements)
• Typical Construction (estimated): Hard chrome-plated rod and heavy-wall steel tube construction for extended seal and cylinder life (common TX-series features)

Ideal For

• Replacing or upgrading hydraulic cylinders on agricultural, industrial, or mobile equipment
• Applications needing a 2" bore with a long 24" stroke
• Equipment builds requiring a compact, value-focused cylinder design with pin hardware included
• Jobs where long pin-to-pin extension is required for full travel range
• Users seeking a durable, service-ready cylinder from a proven hydraulic product line
