TX2500 Tie Rod Cylinder, 2"X6"

TX2500 Tie Rod Cylinder, 2"X6"

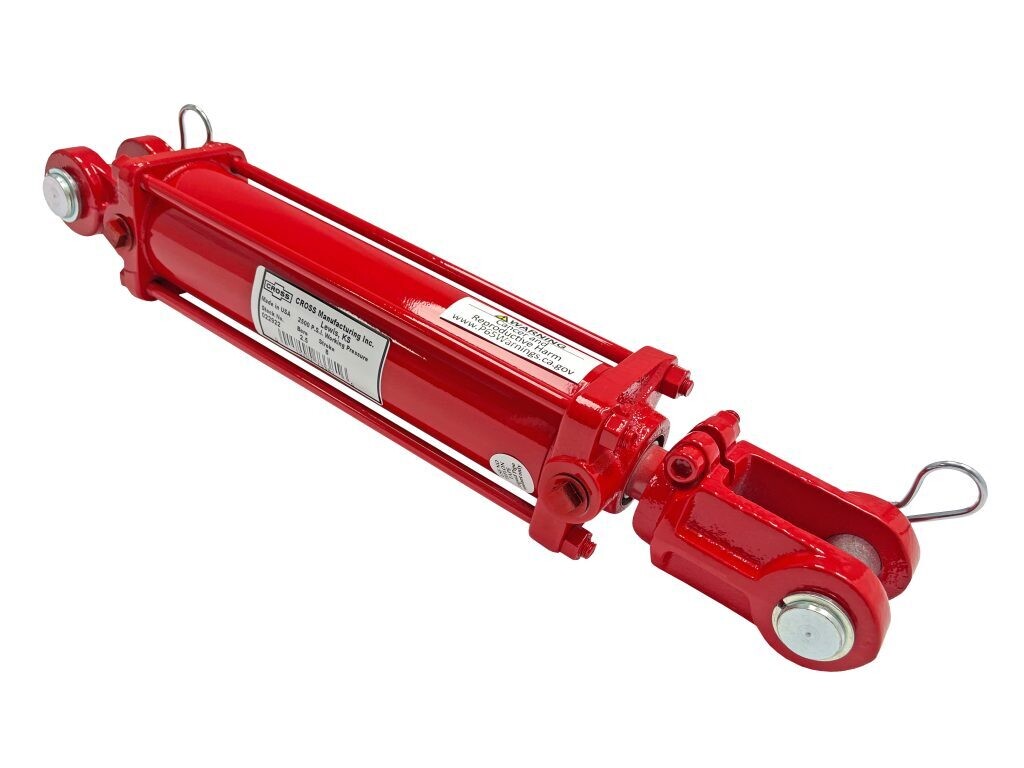

The 20TX06 Hydraulic Cylinder (2″ Bore, 6″ Stroke) is a heavy-duty tie-rod cylinder built for reliable performance in demanding hydraulic applications. Featuring a hard chrome-plated shaft for long wear life and improved sealing, plus skived and burnished heavy-wall steel tubing for extended seal and cylinder service life, it’s engineered to handle shock loads and high-cycle use. With 3/8″ NPT ports, a 1-1/8″ rod, and a 2,500 PSI rating, this steel cylinder is a dependable choice for farm, industrial, and equipment applications requiring consistent push/pull power.

Country of Origin: Varies by production batch

Key Features / Specifications

• Manufacturer Part Number: 648500
• Model: 20TX06
• Product Type: Hydraulic cylinder (tie-rod style)
• Cylinder Bore: 2″
• Stroke: 6″
• Rod Diameter: 1-1/8″
• Port Size: 3/8″ NPT
• Pressure Rating: 2,500 PSI
• Material: Steel
• Color: Red
• Rod / Shaft: High-strength, hard chrome-plated shaft for extended life and dry sealing
• Tube: Precision-finished, skived & burnished heavy-wall steel tubing for longer seal/cylinder life
• Caps: High-grade ductile iron caps with drilled oil passages and increased bearing surface for shock/side loads
• Tie Rods: High-tensile steel tie rods for long service life and high-pressure durability
• Piston: Precision-machined ductile iron piston for a forgiving bearing surface and extended life
• Piston Nut: Heavy-duty steel, torqued, self-locking nut to hold the piston firm under high-cycle loading

Ideal For

• Farm and equipment hydraulics needing a 2″ bore / 6″ stroke cylinder
• Applications running up to 2,500 PSI
• High-cycle or harsh environments where chrome rod + heavy-wall tube extends service life
• Setups requiring 3/8″ NPT hydraulic ports
• Equipment subject to shock or side loads where ductile iron components add durability
