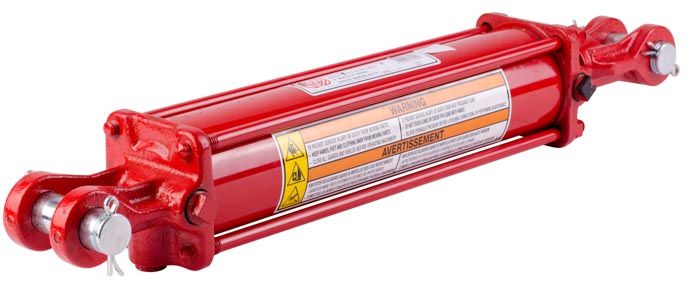

The TX2500 Tie Rod Cylinder is a heavy-duty tie-rod style hydraulic cylinder built for dependable performance in agricultural, industrial, and equipment applications. Rated for 2,500 PSI working pressure, it features a hard chrome-plated rod for long wear life and smooth operation, along with ductile yokes and caps for strength under load. With a 3.5" bore and 12" stroke, it’s a solid choice for lifts, pushes, pulls, and actuation tasks where reliability matters.
Country of Origin: Varies by production batch
Key Features / Specifications
- Product line: TX
- Model: TX2500
- Cylinder type: Tie-rod cylinder
- Bore (size): 3.5"
- Stroke: 12"
- Working pressure: 2,500 PSI
- Rod: Hard chrome-plated
- Yokes & caps: Ductile
- Port thread: 1/2" FPT
- Pin size: 1" cylinder pin
Pin-to-Pin Length
- Retracted (pin-to-pin): 22-1/4"
- Extended (pin-to-pin): 34-1/4"
Ideal For:
- Agricultural implements and farm equipment
- Industrial machinery and material handling
- Lift, dump, and equipment actuation functions
- Replacing worn cylinders with a reliable 3.5" x 12" tie-rod unit
