Country of Origin
Varies by production batch

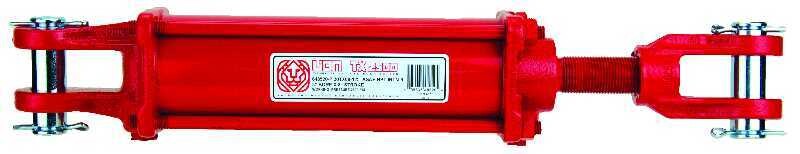

Key Features / Specifications
- Cylinder bore: 3-1/2 in
- Stroke: 16 in
- Rod diameter: 1-1/4 in
- Port size: 1/2 in NPT
- Working pressure: 2,500 PSI
- Material: Steel
- Color/finish: Red
- Rod/shaft: High-strength, hard chrome-plated shaft for extended life and improved sealing in harsh applications
- Tube: Precision-finished, skived & burnished heavy-wall steel tubing for extended seal and cylinder life
- End caps: High-grade ductile iron caps with drilled oil passages and increased bearing surface for high shock and side-load applications
- Tie rods: High-tensile steel tie rods for strength at pressure and long service life
- Piston: Precision-machined ductile iron piston for a forgiving bearing surface and extended life
- Piston retention: Heavy-duty, torqued, self-locking piston nut holds piston firmly under high-cycle loading
Ideal For
- Farm and ag equipment (implements, lift/angle functions, mechanical linkages)
- Hydraulic applications needing a 16" stroke cylinder with 1/2" NPT ports
- Harsh-duty or high-cycle use where chrome rod and skived/burnished tubing improve longevity
- Systems operating up to 2,500 PSI that need a rugged tie-rod style cylinder for serviceability
