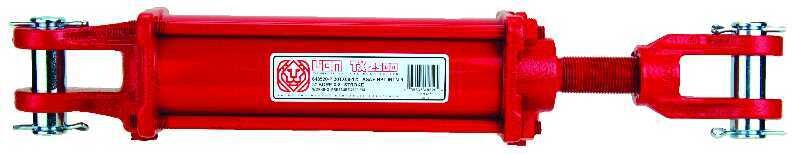

TX2500 Tie Rod Cylinder, 3"X12"

TX2500 Tie Rod Cylinder, 3"X12"

The TX-series TX2500 tie-rod hydraulic cylinder is a durable, double-acting work cylinder built for demanding farm and industrial applications where dependable performance and long service life matter. With a 3" bore and 12" stroke, 90° ORB ports for clean hose routing, and a tough tie-rod design backed by a 30-month warranty, it’s a strong choice for repairs or new builds where matching pin-to-pin dimensions is critical.

Country of Origin
Varies by production batch

Key Features / Specifications

• Product line/Series: TX / TX2500
• Cylinder type: Tie-rod hydraulic cylinder (double-acting)
• Bore: 3"
• Stroke: 12"
• Rod diameter: 1.25"
• Working pressure: 2,500 PSI
• Max rating: Full PSI
• Port type/thread: 3/4-16 ORB
• Port orientation: 90°
• Pin size: 1"
• Pin-to-pin (center-to-center) retracted: 22.25"
• Pin-to-pin (center-to-center) extended: 34.25"
• Force (listed):
  • Push: 21,205
  • Pull: 14,600
