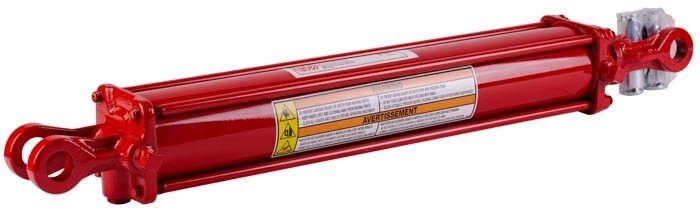

The TX2500 Tie Rod Cylinder is a heavy-duty hydraulic cylinder built for dependable performance in agricultural, industrial, and equipment applications. Rated for 2,500 PSI working pressure, it features a hard chrome-plated rod for long wear life and smooth sealing, along with ductile yokes and caps for strength under load. With a 3" bore and 16" stroke, this cylinder is a solid fit for lift, dump, and actuator functions where consistent power and durability matter.
Country of Origin: Varies by production batch
Key Features / Specifications
- Product line: TX
- Cylinder type: Tie-rod cylinder
- Bore (size): 3"
- Stroke length: 16"
- Working pressure: 2,500 PSI
- Rod: Hard chrome-plated
- Yokes & caps: Ductile
- Port thread: 1/2" FPT
- Pin size: 1"
Pin-to-Pin Length
- Retracted (pin-to-pin): 26-1/4"
- Extended (pin-to-pin): 42-1/4"
Ideal For:
- Agricultural implements and farm equipment
- Lifts, dump functions, and general equipment actuation
- Industrial machinery and material handling
- Replacing worn cylinders with a durable 3" x 16" tie-rod unit
