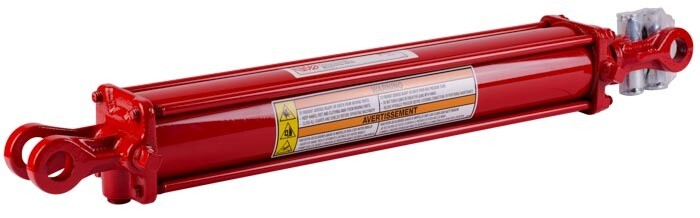

The Lion TX2500 tie-rod hydraulic cylinder is a heavy-duty, double-acting cylinder built for tough ag and industrial work where reliable power and long service life matter. With a 3" bore and 18" stroke, it delivers strong push/pull performance at 2,500 PSI, and features a durable chrome-plated rod, 90° 1/2" NPT ports, and rugged tie-rod construction—backed by a 30-month warranty.
Country of Origin
Varies by production batch
Key Features / Specifications
- Model/Product line: TX2500 / TX Series
- Brand: Lion (Monarch Industries / Lion Hydraulics)
- Cylinder type: Tie Rod (double-acting)
- Bore: 3"
- Stroke: 18"
- Rod diameter: 1.25"
- Working pressure: 2,500 PSI (continuous); designed to withstand shock loads up to 5,000 PSI (proof/shock rating)
- Port type: 1/2" NPT
- Port orientation: 90°
- Pin size: 1"
- Pin-to-pin (center-to-center) retracted: 28.25"
- Pin-to-pin (center-to-center) extended: 46.25"
- Retracted length: 28-1/4"
- Extended length: 46-1/4"
- Performance (listed):
- Push: 16,540 lb
- Pull: 14,600 lb
- Max rating (listed): 2,340
- Color: Red
- Warranty: 30 month
- Build highlights (TX Series): Hard chrome-plated shaft; high-tensile steel tie-rods; ductile iron components; sealing system designed for demanding applications
Ideal For
- Hydraulic implements and equipment requiring a 3" bore, 18" stroke, double-acting tie-rod cylinder
- Farm and industrial applications where 90° ports and 1/2" NPT connections simplify hose routing
- High-use environments needing dependable 2,500 PSI continuous operation with strong push/pull force
- Repairs or replacements where matching pin-to-pin dimensions (28.25" retracted / 46.25" extended) is critical
