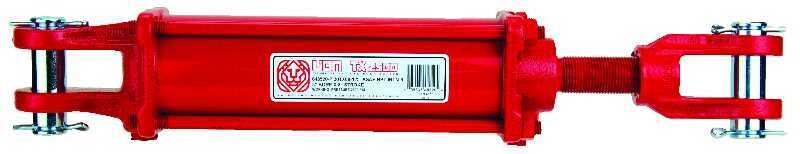

TX2500 Tie Rod Cylinder, 3"X8"

TX2500 Tie Rod Cylinder, 3"X8"

The TX2500 Tie Rod Hydraulic Cylinder (30TX08) delivers dependable lifting and pushing power for demanding hydraulic applications, featuring a 3" bore, 8" stroke, and rugged steel construction rated to 2500 PSI. Built with a hard chrome-plated rod, heavy-wall tubing, and high-strength tie rods, it’s designed for long service life under shock loads and high-cycle use.

Country of Origin: Varies by production batch

Key Features / Specifications

• Brand / Series: TX2500
• Model / SKU: 30TX08
• Manufacturer Part Number: 648520
• Product Type: Tie rod hydraulic cylinder
• Cylinder Bore Size: 3″
• Stroke Length: 8″
• Rod Diameter: 1-1/4″
• Port Size: 1/2″ NPT
• Pressure Rating: 2500 PSI
• Retracted Length: 20-1/4″
• Extended Length: 28-1/4″
• Material: Steel
• Color: Red
• Rod / Shaft: High-strength hard chrome-plated shaft for extended life and improved sealing
• Tube: Skived and burnished heavy-wall steel tubing for longer seal and cylinder life
• End Caps: High-grade ductile iron caps with drilled oil passages and increased bearing surface for shock/side loads
• Tie Rods: High-tensile steel tie rods for durability at high pressure
• Piston: Precision-machined ductile iron piston for a forgiving bearing surface and extended life
• Piston Nut: Heavy-duty steel, torqued, self-locking piston nut for high-cycle loading

Ideal For

• Hydraulic equipment needing a rugged 3″ bore / 8″ stroke cylinder
• Applications requiring 2500 PSI pressure capability
• High-cycle use where a chrome-plated rod improves durability and sealing
• Systems exposed to shock and side loads needing ductile iron caps and strong tie rods
• Farm, shop, and industrial hydraulic repairs and builds
