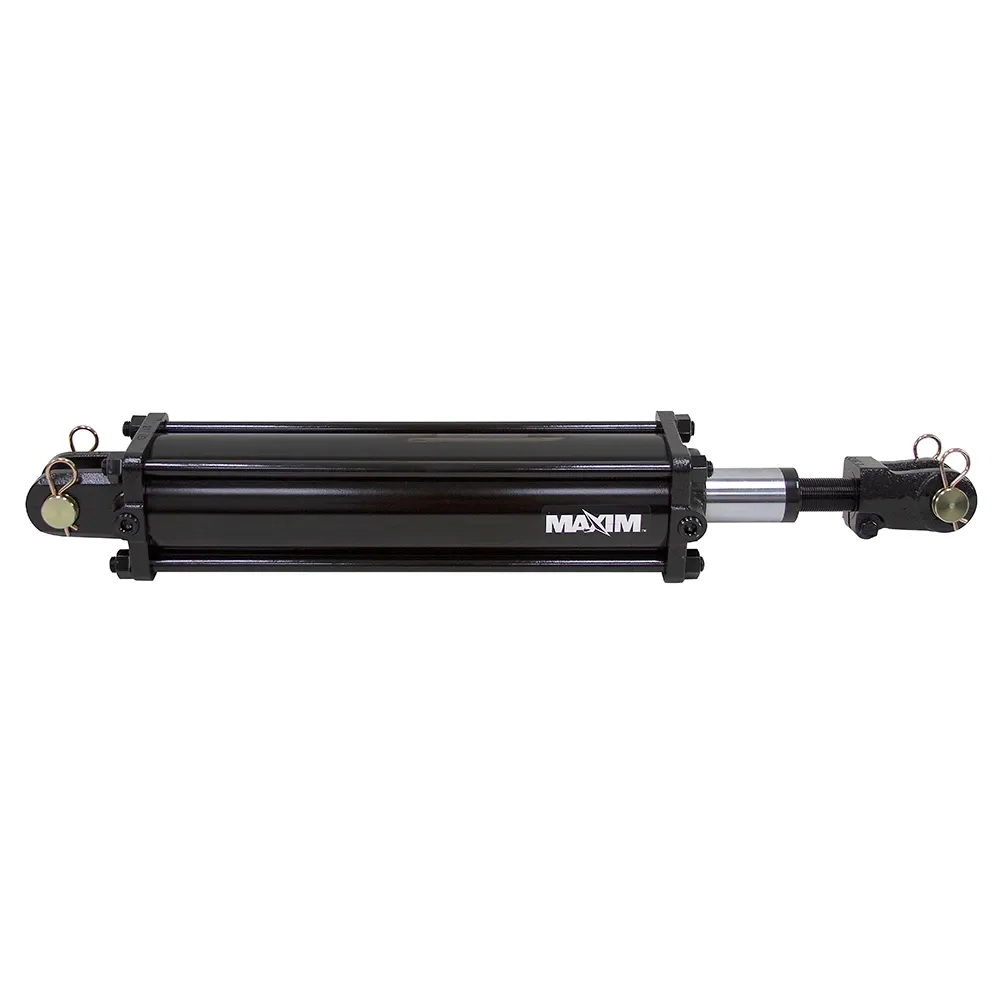

Maxim 218366 Tie Rod Cylinder, 4"X18"X1-1/2"

Maxim 218366 Tie Rod Cylinder, 4" X 18" X 1-1/2"

The Maxim 218366 Tie-Rod Hydraulic Cylinder is a heavy-duty double-acting cylinder built to deliver reliable power for agricultural and industrial applications, whether you’re lifting, pushing, or putting serious force where it counts. With a 4" bore and 18" stroke, this cylinder provides strong, consistent performance, backed by a 2500 PSI rating and a 1.5" diameter rod for durability under load. Designed with clevis mounts on both ends and standard 1/2" NPT ports, it’s ready to integrate into a wide range of hydraulic systems—no drama, just dependable muscle.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 218366
• Brand: Maxim
• Product Type: Double-acting tie-rod hydraulic cylinder
• Bore x Stroke: 4" x 18"
• Operating Pressure: 2500 PSI
• Rod Diameter: 1.5"
• Column Load Capacity: 31,410 lbs
• Ports: 1/2" NPT
• Retracted Length: 28.25"
• Weight: 54 lbs
• Construction: Tie-rod design for strength and serviceability

End Mountings

• Rod End Clevis:
  • Outside Width: 2.72"
  • Inside Width: 1.165"
  • Throat Depth: 2.125"
  • Pin Hole: 1.00"
• Base End Clevis:
  • Outside Width: 2.76"
  • Inside Width: 1.165"
  • Throat Depth: 2.00"
  • Pin Hole: 1.00"

Ideal For

• Agricultural equipment requiring dependable hydraulic force
• Industrial machinery needing push/pull cylinder operation
• Applications requiring double-acting performance and consistent control
• Systems needing standard clevis mounting and 1/2" NPT connections
• Anyone who needs serious hydraulic power without overcomplicating the setup
