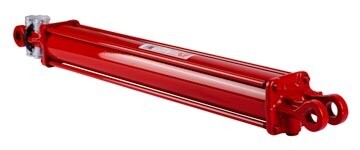

TX2500 Tie Rod Cylinder, 4"X24"

TX2500 Tie Rod Cylinder, 4"X24"

The 40TX24 TX2500 Tie Rod Cylinder is a heavy-duty hydraulic cylinder built for high-pressure, high-cycle applications where strength and reliability are critical. Featuring a 4" bore, 24" stroke, and 2500 PSI rating, this cylinder is designed to handle demanding equipment tasks with consistent performance. With a hard chrome-plated rod, precision-machined components, and high-tensile tie rods, it’s built to last in tough environments—because downtime isn’t exactly productive.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 40TX24 (TX2500 Series)
• Product Type: Hydraulic tie rod cylinder
• Bore Size: 4 in
• Stroke Length: 24 in
• Rod Diameter: 1-1/2 in
• Retracted Length: 34-1/4 in
• Extended Length: 58-1/4 in
• Pressure Rating: 2500 PSI
• Port Size: 1/2 in NPT
• Material: Heavy-duty steel construction
• Rod Finish: Hard chrome-plated shaft for corrosion resistance and extended seal life
• Cylinder Tube: Precision skived and burnished heavy-wall steel for improved sealing and longevity
• End Caps: High-grade ductile iron with drilled oil passages and increased bearing surface
• Tie Rods: High-tensile steel for strength under high pressure
• Piston: Precision-machined ductile iron for durability and smooth operation
• Piston Nut: Heavy-duty, self-locking design for high-cycle reliability

Ideal For

• Agricultural and industrial hydraulic systems
• Equipment requiring reliable linear force and high-pressure performance
• Applications with shock loads and frequent cycling
• Replacing or upgrading worn hydraulic cylinders
• Anyone who needs a cylinder that keeps pushing—without giving up halfway through the job
