U-Cup Seal

U-Cup Seal, 22X30X5.7

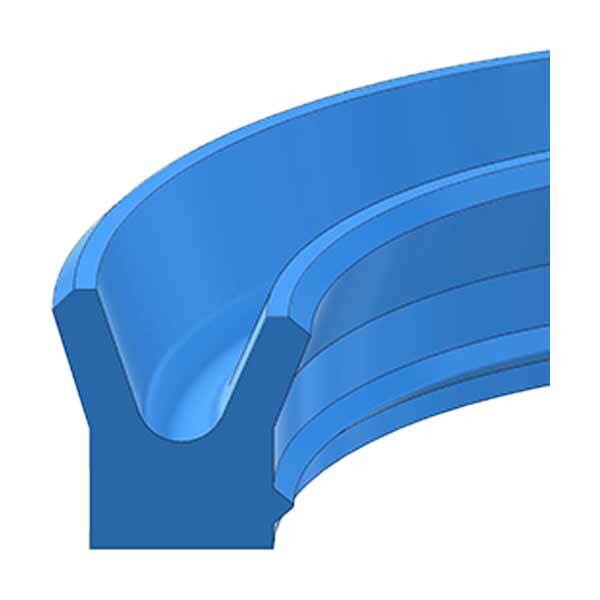

The MRTU-22X30X5.7 U-Cup Seal is a twin-lip urethane rod seal engineered for high-pressure hydraulic applications. Molded from tough urethane, this seal features an additional secondary lip positioned farther from the heel (VME design) to improve stability, retain lubrication, and block contaminants. Designed to handle demanding operating conditions, it provides reliable sealing performance up to 5,000 PSI.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: MRTU-22X30X5.7
• Seal Type: Twin-Lip U-Cup (Rod Seal)
• Material: Urethane
• Nominal I.D. (Rod): 22 mm
• Nominal O.D. (Housing): 30 mm
• Nominal Height: 5.7 mm
• Groove Width: 6.30 mm
• Rod Diameter: 22.00 mm
• Housing Diameter: 30.00 mm
• Temperature Range: -40°F to +225°F
  E (European urethane): -22°F to +212°F
• Pressure Range: 0 to 5,000 PSI
• Maximum Speed: 3 ft/sec
• Design Feature: Secondary lip positioned further from heel than standard MRTU for enhanced contaminant control
• Weight: 0.004125 lb

Ideal For

• Hydraulic cylinder rod sealing applications
• Equipment operating under high pressure (up to 5,000 PSI)
• Systems requiring improved lubrication retention and contamination protection
• Industrial, agricultural, and mobile hydraulic equipment requiring a 22 x 30 x 5.7 mm U-cup seal
