U-Seal, 1-1/2"X1-7/8"X1/4"

U-Seal, 1-1/2"X1-7/8"X1/4"

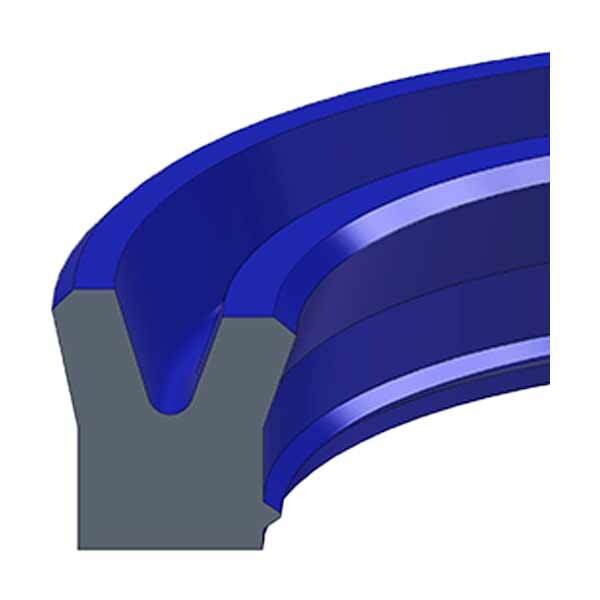

The DRTU18-1.50-25 rod seal is a high-pressure urethane sealing solution designed for hydraulic applications where you need tight sealing, strong wear resistance, and dependable performance under serious load. Made from 92A urethane, it’s built to handle up to 6,000 PSI and rod speeds up to 3 ft/sec, with a wide operating temperature range from -65°F to +230°F. In other words: it’s the kind of seal that shows up, does the job, and doesn’t ask for applause.

Country of Origin
Varies by production batch

Key Features / Specifications

• Product / Part Number: DRTU18-1.50-25
• Product Type: Rod seal
• Material: 92A Urethane
• Cross Section: 3/16
• Rod Diameter (D1): 1.500 in
• Nominal ID (A): 1-1/2 in
• Nominal OD (B): 1-7/8 in
• Nominal Height (C): 1/4 in
• Groove Width (D): 0.281 in
• Housing Diameter (G): 1.875 in
• Temperature Range: -65°F to +230°F
• Pressure Range: 0 to 6,000 PSI
• Max Speed: 3 ft/sec
• Maximum Extrusion Gap (Max Diameter Gap):
  • 1,000 PSI: 0.032 in
  • 3,000 PSI: 0.015 in
  • 5,000 PSI: 0.012 in
  • 6,000 PSI: 0.009 in
• Weight: 0.0093 lb
• Part Number Format: (Prefix)(CS) - (ID) - (Height)

Ideal For

• Hydraulic cylinders needing a urethane rod seal with strong wear resistance
• Systems operating up to 6,000 PSI
• Applications with rod speeds up to 3 ft/sec
• Equipment exposed to wide temperature swings (-65°F to +230°F)
• Builds where controlling extrusion gap matters—because “seal squish-out” is not a maintenance strategy
