U-Seal, 1-1/2"X1-7/8"X3/8"

U-Seal, 1-1/2"X1-7/8"X3/8"

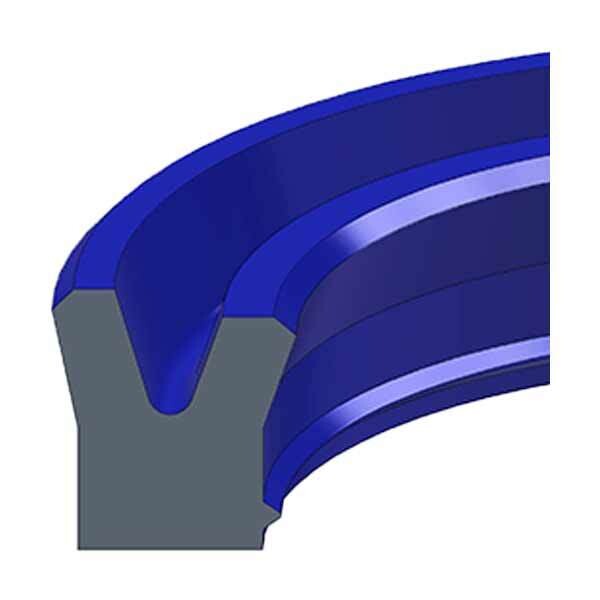

The DRTU18-1.50-37 U-Seal is a dynamic rod seal engineered for maximum life and reliability in hydraulic cylinder applications. Its added secondary lip on the inside diameter helps deliver reduced leakage, lower friction, increased stability, and keeps air and contaminants from sneaking into the cylinder—because the only thing that should be moving freely is the rod, not your hydraulic fluid.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: DRTU18-1.50-37
• Product Type: U-Seal (Dynamic Rod Seal)
• Material: 92A Urethane
• Cross Section: 3/16
• Nominal Rod / ID (A): 1-1/2 in (Rod: 1.500)
• Nominal Housing / OD (B): 1-7/8 in (Housing Diameter: 1.875)
• Nominal Height (C): 3/8 in
• Groove Width (D): 0.406 in
• Temperature Range: -65° to +230°F
• Pressure Range: 0 to 6,000 PSI
• Max Speed: 3 ft/sec
• Maximum Extrusion Gap (Max Diam. Gap):
  • 0.032" @ 1,000 PSI
  • 0.015" @ 3,000 PSI
  • 0.012" @ 5,000 PSI
  • 0.009" @ 6,000 PSI
• Weight: 0.01400000 lbs

Ideal For

• Hydraulic cylinder rod sealing where long life and reliability matter
• Systems needing reduced leakage and lower friction in dynamic motion
• Applications where keeping air and contaminants out helps prevent wear and performance loss
• High-pressure setups up to 6,000 PSI and temperatures from -65° to +230°F
