U-Seal, 1-1/2"X1-7/8"X5/16"

U-Seal, 1-1/2"X1-7/8"X5/16"

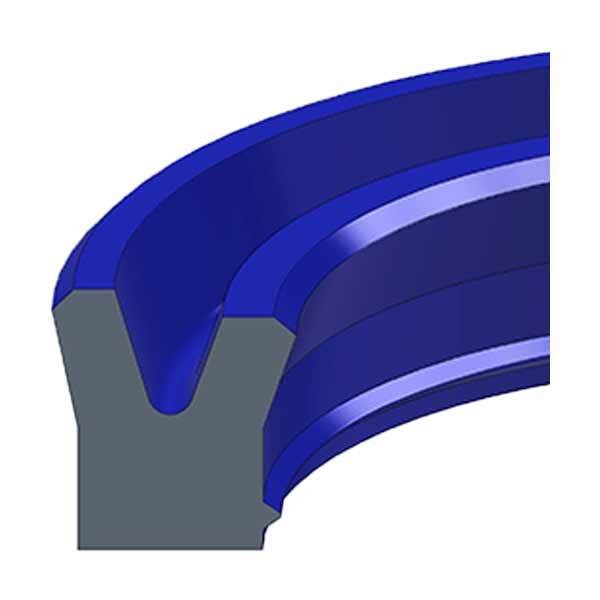

The DRTU18-1.50-31 U-Seal (1-1/2" x 1-7/8" x 5/16") is a high-performance dynamic rod seal engineered for maximum life and reliability in hydraulic cylinder applications. Designed with a secondary inner lip, this seal reduces leakage, lowers friction, increases stability, and helps prevent air and contaminants from entering the system. Built for demanding pressure environments where performance matters.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: DRTU18-1.50-31
• Product Type: U-Seal (rod seal)
• Material: 92A Urethane
• Nominal ID (A): 1-1/2"
• Nominal OD (B): 1-7/8"
• Nominal Height (C): 5/16"
• Cross Section: 3/16"
• Rod Size: 1.500"
• Housing Diameter (G): 1.875"
• Groove Width (D): 0.343"
• Pressure Range: 0 to 6,000 PSI
• Temperature Range: -65°F to +230°F
• Maximum Speed: 3 ft/sec
• Weight: 0.0116 lbs

Performance Features

• Dual-lip design for enhanced sealing and reduced leakage
• Lower friction for improved efficiency
• Increased stability under dynamic operation
• Helps prevent air and contaminant ingress

Maximum Extrusion Gap

• 1000 PSI: 0.032"
• 3000 PSI: 0.015"
• 5000 PSI: 0.012"
• 6000 PSI: 0.009"

Ideal For

• Hydraulic cylinders requiring dynamic rod sealing
• High-pressure systems up to 6,000 PSI
• Applications demanding long seal life and reduced friction
• Equipment operating in wide temperature environments
