U-Seal, 1-1/8"X1-3/8"X3/16"

U-Seal, 1-1/8"X1-3/8"X3/16"

The U12-1.12-18D Style 800 U-Seal is a tough polyurethane U-seal designed for dependable hydraulic sealing, even when the system is sitting idle. Its four-lobed expander ring energizes the sealing lips at zero pressure to help prevent “weeping”—because nobody wants to come back to a machine that’s marking its territory.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: U12-1.12-18D
• Product Type: Style 800 U-seal
• Material: 95A urethane (polyurethane)

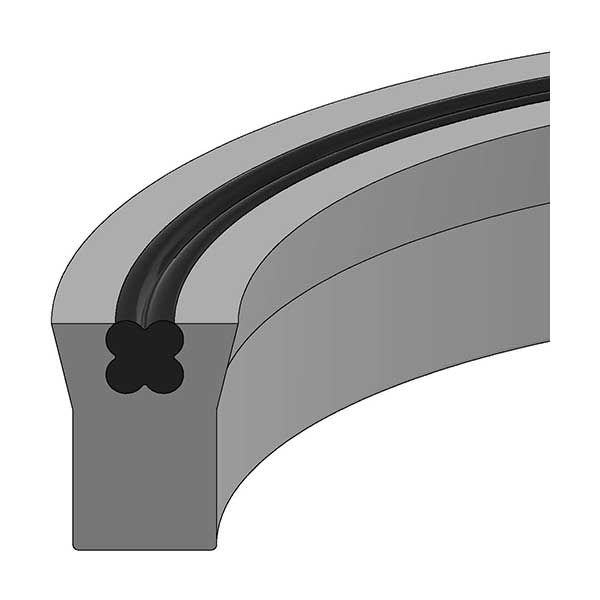

• Design Feature: Four-lobed expander ring energizes sealing lips even at zero pressure
• Cross Section: 1/8 in
• Nominal Size: 1-1/8 in (ID) x 1-3/8 in (OD) x 3/16 in (Height)
• Rod: 1.125 in
• Bore: 1.375 in
• Groove Diameter (H): 1.125 in
• Groove Width (D): 0.206 in
• Housing Diameter (G): 1.375 in
• Piston Diameter (I): 1.374 in
• Throat Diameter (F): 1.126 in
• Temperature Range: -65°F to +220°F
• Pressure Range: 0 to 5,000 PSI
• Max Speed: 3 ft/sec
• Weight: 0.00363800 lbs

Ideal For

• Hydraulic applications needing a 1-1/8" x 1-3/8" x 3/16" Style 800 U-seal
• Systems where preventing low-pressure or idle-time “weeping” is important
• High-pressure service up to 5,000 PSI with wide temperature swings from -65°F to +220°F
• Equipment that benefits from abrasion-resistant polyurethane sealing performance
