U-Seal, 1.25"X1.62"X5/16"

U-Seal, 1.25"X1.62"X5/16"

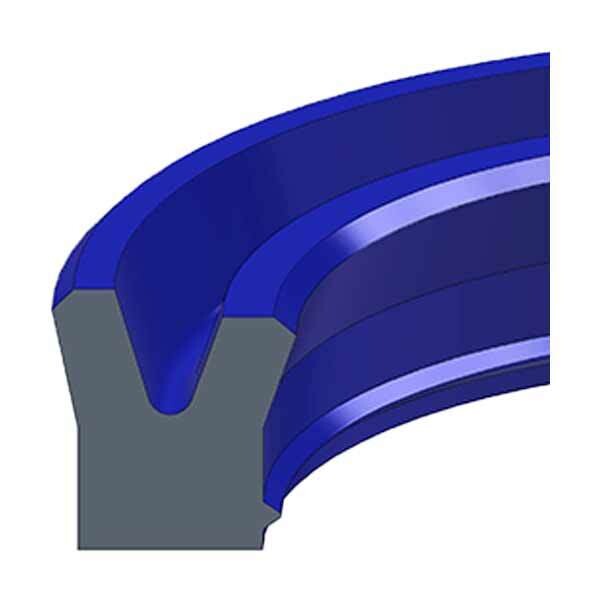

The DRTU18-1.25-31 U-Seal is a high-performance rod seal designed for demanding hydraulic applications where pressure, temperature range, and wear resistance matter. Made from 92A urethane, this U-seal handles up to 6,000 PSI and operates across a wide -65°F to +230°F range, making it a tough, dependable choice for keeping fluid where it belongs—inside the cylinder, not decorating your shop floor.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: DRTU18-1.25-31
• Product Type: U-Seal / rod seal
• Material: 92A Urethane
• Cross Section: 3/16 in
• Nominal ID (A): 1-1/4 in (1.25 in)
• Nominal OD (B): 1-5/8 in (1.62 in)
• Nominal Height (C): 5/16 in
• Rod Size: 1.250 in
• Housing Diameter (G): 1.625 in
• Groove Width (D): 0.343 in
• Temperature Range: -65°F to +230°F
• Pressure Range: 0 to 6,000 PSI
• Max Speed: 3 ft/sec
• Weight: 0.0098 lb
• Part Number Format: (Prefix)(CS) - (ID) - (Height)
• Maximum Extrusion Gap (Max Diameter Gap):
  • 1000 PSI: 0.032 in
  • 3000 PSI: 0.015 in
  • 5000 PSI: 0.012 in
  • 6000 PSI: 0.009 in

Ideal For

• Hydraulic cylinders needing a 1.250" rod seal with 1.625" housing diameter
• High-pressure systems up to 6,000 PSI
• Applications requiring wide temperature performance (-65°F to +230°F)
• Equipment where urethane wear resistance helps extend service life
