U-Seal, 1-3/4"X2-1/4"X3/8"

U-Seal, 1-3/4"X2-1/4"X3/8"

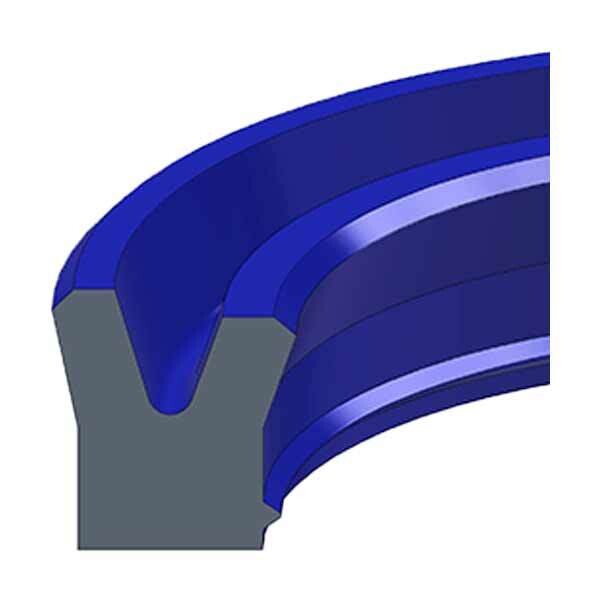

The DRTU25-1.75-37 U-Seal is a high-performance urethane U-cup seal built for demanding hydraulic applications where pressure and temperature swings are part of the job. Made from 92A urethane, it’s rated up to 6,000 PSI and operates from -65°F to +230°F, with a 1-3/4" ID, 2-1/4" OD, and 3/8" height for precise fit in the proper gland—because seals only get one job, and they should do it without drama.

Country of Origin
Varies by production batch

Key Features / Specifications

• Product / Part Number: DRTU25-1.75-37
• Product Type: U-seal / U-cup seal
• Size: 1-3/4 in ID × 2-1/4 in OD × 3/8 in height
• Material: 92A urethane
• Cross Section: 1/4 in
• Rod Size: 1.750 in
• Housing Diameter: 2.250 in
• Groove Width: 0.406 in
• Temperature Range: -65°F to +230°F
• Pressure Range: 0 to 6,000 PSI
• Max Speed: 3 ft/sec
• Weight: 0.0221 lb
• Part Number Format: (Prefix)(CS) - (ID) - (Height)
• Maximum Extrusion Gap (Max Diameter Gap):
  • 1,000 PSI: 0.032 in
  • 3,000 PSI: 0.015 in
  • 5,000 PSI: 0.012 in
  • 6,000 PSI: 0.009 in

Ideal For

• Hydraulic sealing where high pressure up to 6,000 PSI is required
• Equipment operating in extreme temperatures from -65°F to 230°F
• Rod sealing applications needing urethane toughness and wear resistance
• Repairs where correct rod/housing/groove dimensions are critical
• Anyone who wants a seal that holds pressure instead of surrendering immediately
