U-Seal, 1-3/4"X2-1/8"X3/8"

U-Seal, 1-3/4"X2-1/8"X3/8"

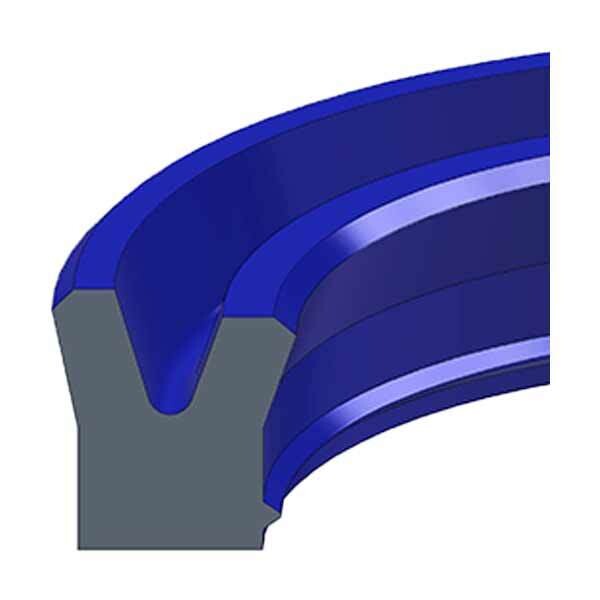

The DRTU18-1.75-37 U-Seal is a high-performance rod seal built for demanding hydraulic applications where high pressure, wide temperature range, and wear resistance are critical. Made from 92A urethane, this U-seal is rated for up to 6,000 PSI and 3 ft/sec speeds, helping keep hydraulic fluid where it belongs—inside the cylinder, not providing “free lubrication” to everything around it.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: DRTU18-1.75-37
• Product Type: U-Seal / rod seal
• Material: 92A Urethane
• Cross Section: 3/16 in
• Nominal ID (A): 1-3/4 in (1.75 in)
• Nominal OD (B): 2-1/8 in (2.125 in)
• Nominal Height (C): 3/8 in
• Rod Size: 1.750 in
• Housing Diameter (G): 2.125 in
• Groove Width (D): 0.406 in
• Temperature Range: -65°F to +230°F
• Pressure Range: 0 to 6,000 PSI
• Max Speed: 3 ft/sec
• Weight: 0.0162 lb
• Part Number Format: (Prefix)(CS) - (ID) - (Height)
• Maximum Extrusion Gap (Max Diameter Gap):
  • 1000 PSI: 0.032 in
  • 3000 PSI: 0.015 in
  • 5000 PSI: 0.012 in
  • 6000 PSI: 0.009 in

Ideal For

• Hydraulic cylinders needing a 1.750" rod seal with a 2.125" housing diameter
• High-pressure systems up to 6,000 PSI
• Applications requiring wide temperature performance (-65°F to +230°F)
• Equipment where urethane wear resistance helps extend service life
• Anyone who prefers their hydraulics to be powerful, not leaky
