U-Seal, 1-3/4"X2-1/8"X5/16"

U-Seal, 1-3/4"X2-1/8"X5/16"

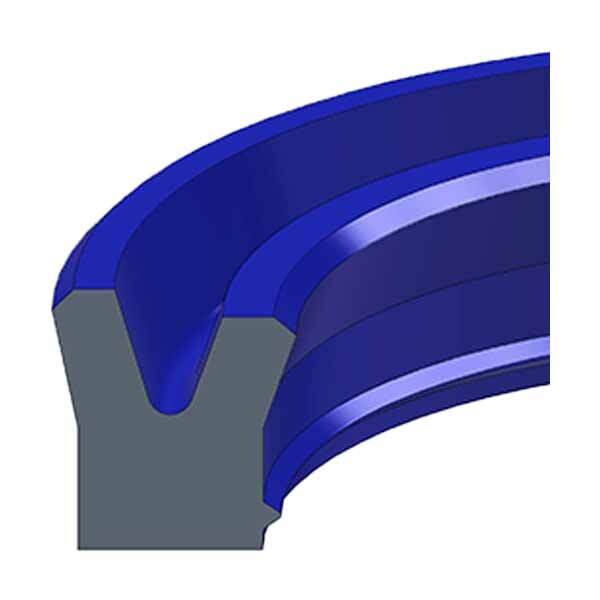

This U-Seal is a high-pressure 92A urethane sealing solution sized 1-3/4" x 2-1/8" x 5/16", engineered to perform in demanding hydraulic applications up to 6,000 PSI. With a wide -65° to +230°F operating range and controlled extrusion characteristics, it’s built to keep things sealed tight when conditions (and pressure) refuse to behave.

Country of Origin
Varies by production batch

Key Features / Specifications

• Product / Part Number: DRTU18-1.75-31
• Product Type: U-Seal
• Material: 92A Urethane
• Size: 1-3/4" ID x 2-1/8" OD x 5/16" Height
• Cross Section: 3/16"
• Nominal ID (A): 1-3/4"
• Nominal OD (B): 2-1/8"
• Nominal Height (C): 5/16"
• Groove Width (D): 0.343"
• Rod Size: 1.750"
• Housing Diameter (G): 2.125"
• Temperature Range: -65° to +230°F
• Pressure Range: 0 to 6,000 PSI
• Max Speed: 3 ft/sec
• Weight: 0.0134 lbs
• Maximum Extrusion Gap (Max Diameter Gap):
  • 1,000 PSI: 0.032"
  • 3,000 PSI: 0.015"
  • 5,000 PSI: 0.012"
  • 6,000 PSI: 0.009"
• Part Number Format: (Prefix)(CS) – (ID) – (Height)

Ideal For

• High-pressure hydraulic rod sealing up to 6,000 PSI
• Equipment operating in extreme cold or high-heat environments
• Applications where extrusion control is critical at elevated pressures
• Systems running up to 3 ft/sec surface speed
• Maintenance teams that would rather install it once and move on
