U-Seal, 1.37X1.75X5/16

U-Seal, 1.37X1.75X5/16

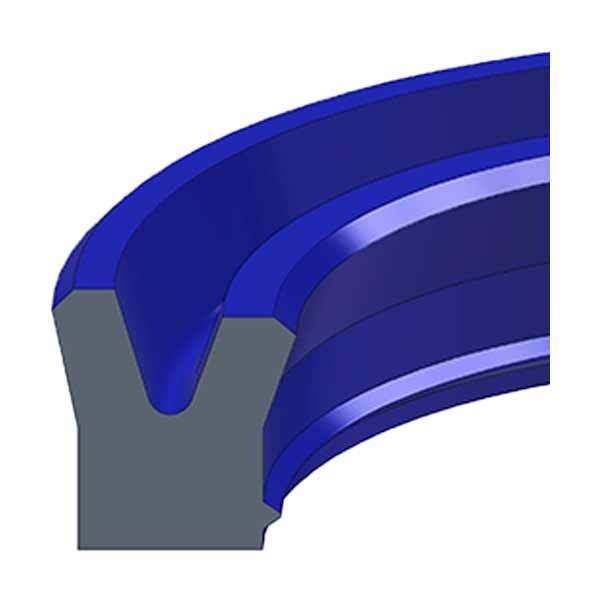

The DRTU18-1.37-31 U-Seal is a high-pressure 92A urethane rod seal built for hydraulic applications that demand tight sealing, strong wear resistance, and reliable extrusion control. Rated up to 6,000 PSI and 3 ft/sec, it’s designed to perform under serious load while maintaining stability in the groove—because the seal should handle the pressure, not you.

Country of Origin
Varies by production batch

Key Features / Specifications

• Product / Part Number: DRTU18-1.37-31
• Product Type: U-seal / rod seal
• Material: 92A Urethane
• Cross Section: 3/16
• Rod Diameter: 1.375 in
• Nominal ID (A): 1-3/8 in
• Nominal OD (B): 1-3/4 in
• Nominal Height (C): 5/16 in
• Groove Width (D): 0.343 in
• Housing Diameter (G): 1.750 in
• Temperature Range: -65°F to +230°F
• Pressure Range: 0 to 6,000 PSI
• Max Speed: 3 ft/sec
• Maximum Extrusion Gap (Max Diameter Gap):
  • 1,000 PSI: 0.032 in
  • 3,000 PSI: 0.015 in
  • 5,000 PSI: 0.012 in
  • 6,000 PSI: 0.009 in
• Weight: 0.0108 lb
• Part Number Format: (Prefix)(CS) - (ID) - (Height)

Ideal For

• Hydraulic cylinders needing a 92A urethane U-seal / rod seal
• Systems operating up to 6,000 PSI
• Applications with rod speeds up to 3 ft/sec
• Builds where extrusion gap control is important at high pressure
• Anyone who wants the seal to stay in place and do its job—quietly, like a professional
