U-Seal, 2-1/4"X2-3/4"X3/8"

U-Seal, 2-1/4"X2-3/4"X3/8"

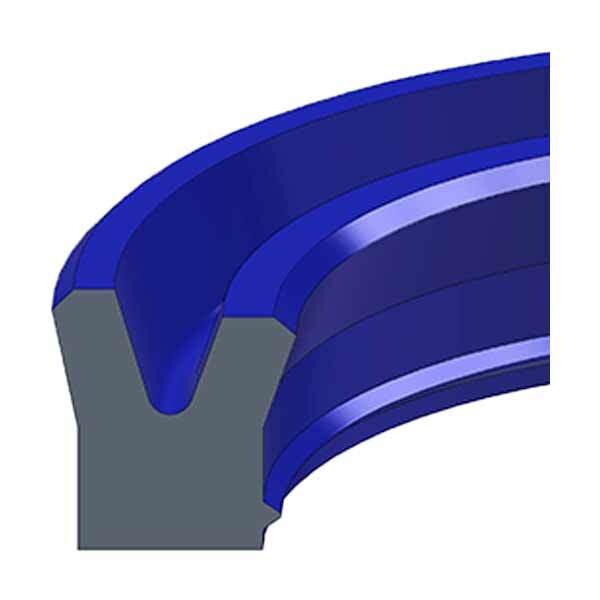

The DRTU25-2.25-37 U-Seal is a 92A urethane U-seal sized for 2-1/4" rod applications, built to handle demanding hydraulic sealing with pressure capability up to 6,000 PSI and temperatures from -65°F to +230°F. With a 3 ft/sec speed rating and defined extrusion-gap limits by pressure, it’s a serious seal for serious work—because leaks are only acceptable when you’re telling tall tales.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: DRTU25-2.25-37
• Product Type: U-seal
• Material: 92A urethane
• Cross Section: 1/4"
• Nominal ID (A): 2-1/4"
• Nominal OD (B): 2-3/4"
• Nominal Height (C): 3/8"
• Groove Width (D): 0.406"
• Rod Size: 2.250"
• Housing Diameter (G): 2.750"
• Temperature Range: -65°F to +230°F
• Pressure Range: 0 to 6,000 PSI
• Max Speed: 3 ft/sec
• Weight: 0.028 lb
• Part Number Format (as stated): (Prefix)(CS) - (ID) - (Height)

Ideal For

• Hydraulic cylinder rod sealing applications requiring a 2-1/4" x 2-3/4" x 3/8" U-seal
• Systems operating up to 6,000 PSI where urethane durability is preferred
• Cold-weather and high-heat environments within -65°F to +230°F
• Maintenance and rebuilds needing a seal with defined groove and housing sizing

Maximum Extrusion Gap (Max Diameter Gap)

• 1000 PSI: 0.032"
• 3000 PSI: 0.015"
• 5000 PSI: 0.012"
• 6000 PSI: 0.009"
