U-Seal, 2"X2-1/2"X3/8"

U-Seal, 2"X2-1/2"X3/8"

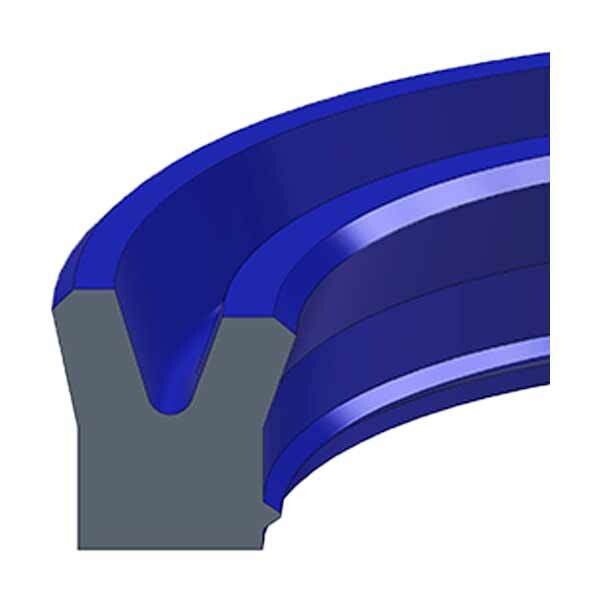

The DRTU25-2.00-37 U-Seal is a high-performance hydraulic rod seal made from 92A urethane for tough sealing in demanding applications. Rated up to 6,000 PSI and 3 ft/sec, it’s designed to handle pressure while maintaining a reliable seal across a wide temperature range—because hydraulic leaks have a talent for showing up the minute you’re already running late.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: DRTU25-2.00-37
• Product Type: U-Seal / rod seal
• Material: 92A urethane
• Cross Section: 1/4
• Nominal ID (A): 2.00"
• Nominal OD (B): 2-1/2"
• Nominal Height (C): 3/8"
• Groove Width (D): 0.406"
• Rod Size: 2.000"
• Housing Diameter (G): 2.500"
• Temperature Range: -65°F to +230°F
• Pressure Range: 0 to 6,000 PSI
• Max Speed: 3 ft/sec
• Weight: 0.0252 lbs

Maximum Extrusion Gap (Max Diameter Gap)

• 1,000 PSI: 0.032"
• 3,000 PSI: 0.015"
• 5,000 PSI: 0.012"
• 6,000 PSI: 0.009"

Ideal For

• Hydraulic cylinders needing a 2.000" rod U-seal rated up to 6,000 PSI
• Applications requiring urethane durability and wide temp tolerance (-65°F to +230°F)
• Systems where controlling extrusion gap is important at higher pressures
• Repairs and rebuilds where matching ID/OD/height and groove width is critical
