Vanguard Start Capacitor, 270-324MFD 125V

Vanguard Start Capacitor, 270-324MFD 125V

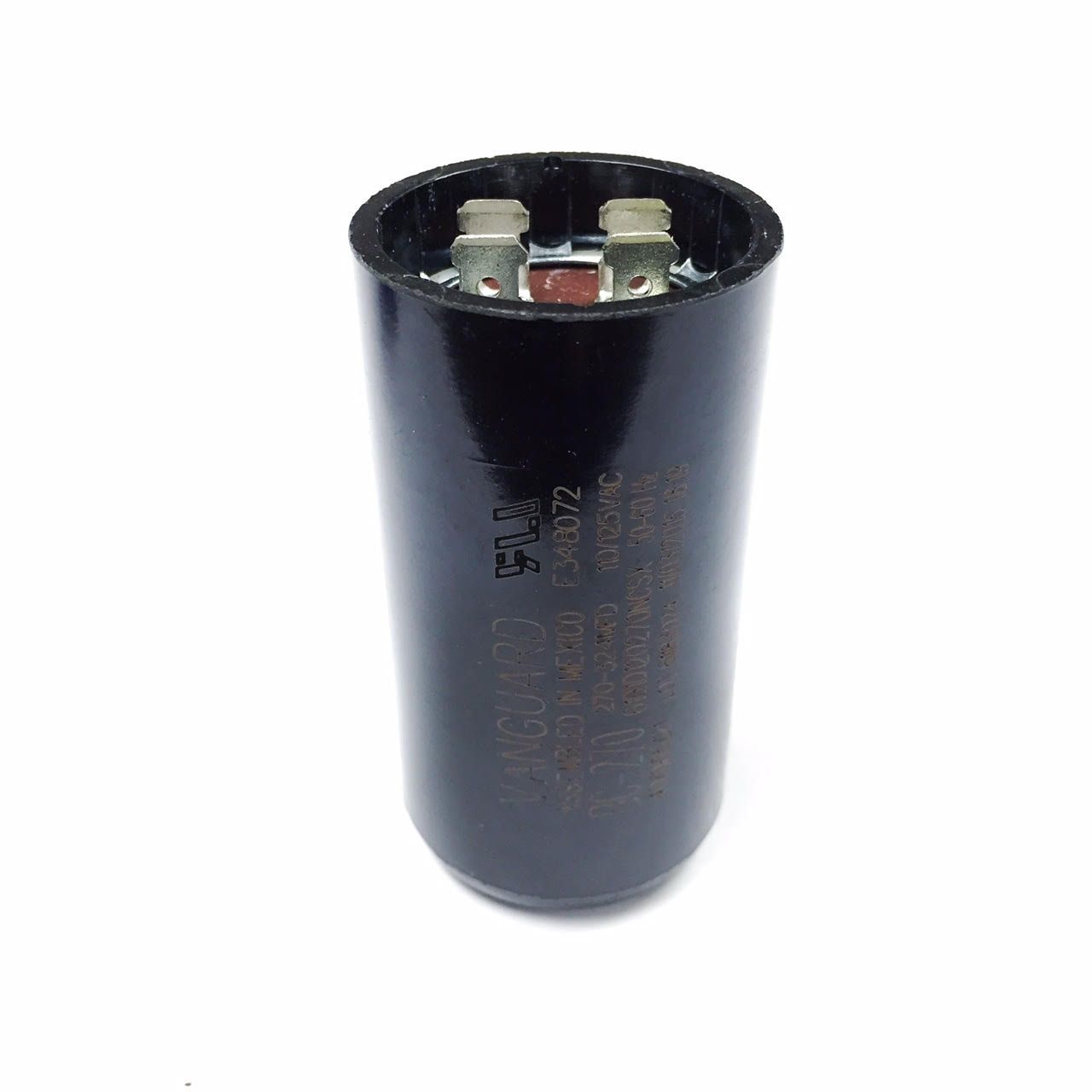

The BC-270 Vanguard Start Capacitor is a reliable motor start capacitor built to deliver the quick burst of energy needed to get compatible single-phase motors turning over smoothly. Rated 270–324 µF at 110–125 VAC, it features a round phenolic case and four 1/4" spade terminals for easy hookup—because motors should start on command, not after a pep talk.

Country of Origin
Mexico

Key Features / Specifications

• Brand: Vanguard
• Model / Part Number: BC-270
• Additional Part Number: 61B1D120270NCSX
• Product Type: Start capacitor
• Capacitance: 270–324 µF (MFD/uF)
• Voltage Rating: 110–125 VAC
• Frequency: 50/60 Hz
• Temperature Range: -40°C to +65°C (-40°F to 149°F)
• Case Style / Material: Round phenolic
• Dimensions:
  • Diameter: 1-7/16 in ± 0.02 in
  • Length: 2-3/4 in +0.02 in / -0.03 in
• Connection Type: Four 1/4 in spade terminals
• Resistor: None
• Certifications: UL Recognized
• Weight: 0.20 lb
• UPC: N/A

Ideal For

• Replacing a worn or failed start capacitor in compatible single-phase motor systems
• Applications requiring a 270–324 µF capacitor rated for 110–125 VAC
• Equipment operating across wide temperature swings (-40°C to +65°C)
• Maintenance work where quick, dependable motor starts are non-negotiable
