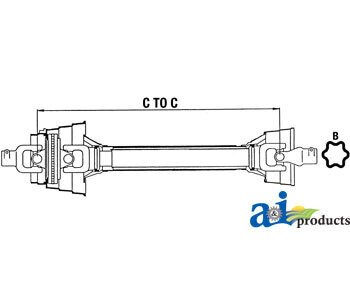

Walterscheid 2580 CV Complete Pto Shaft Assy, 58"

Walterscheid 2580 CV Complete Pto Shaft Assy, 1-3/8"-21 QD X 1-3/4"-20 Clamp Yoke

The A-WC584823A Walterscheid 2580 CV PTO Shaft Assembly is a heavy-duty constant velocity driveline built for smooth, high-angle power transfer in demanding agricultural applications. Rated for 90 HP at 540 RPM and 130 HP at 1000 RPM, this shaft delivers consistent rotational speed with reduced vibration, making it ideal for rotary cutters and similar equipment. Featuring star-style tubing and quick-disconnect tractor end, it’s built for both performance and convenience—because a PTO shaft should work hard, not fight you during hookup.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: A-WC584823A
• Brand: Walterscheid
• Series: 2580 CV Series
• Product Type: Complete constant velocity (CV) PTO shaft assembly
• Horsepower Rating: 90 HP @ 540 RPM / 130 HP @ 1000 RPM
• C-to-C Minimum Length: 48" (1210 mm)
• Total Collapsed Length: 58" (1462 mm)
• Total Length: 58"
• Tractor End Connection: 1-3/8" – 21 spline (AS Quick Disconnect Lock)
• Implement End Connection: 1-3/4" – 20 spline clamp yoke
• Tube Style: Star tube, Type B
• Size / Series: 2580
• Performance: Constant velocity design maintains smooth power transfer at variable angles
• Compatibility: Fits John Deere rotary cutters and Walterscheid WWE series
• Construction: Heavy-duty driveline components for long service life under load
• Adjustability: May require cutting to proper length for correct fit and safe operation
• Installation Note: Ensure proper overlap of drive tubes to avoid bottoming out or separation
• Replaces Part Numbers:
  • John Deere: A-BP18400, A-BW14544, BW15804
  • Walterscheid: PM14607951, PM14617955, W258012100203-A
  • Rhino: A-00760453, A-00775306
  • Woods: A-1004936
  • Land Pride: A-826-244C
  • Drive-Line: 14607951, 14617955
• Crossed From:
  • John Deere: PM14606851, PM14616855
  • Case-IH: W14607951DS, W14617955DS
  • A&I Mega-Cross: 971-14606851

Ideal For

• Rotary cutters and heavy-duty implements requiring CV PTO shafts
• Operators needing smooth operation at wide working angles
• Equipment matched to Walterscheid 2580 series drivelines
• Replacing OEM shafts across John Deere, Rhino, Woods, Land Pride, and others
• Anyone who wants a shaft that hooks up quickly, runs smooth, and doesn’t shake your equipment like it’s got something to prove
