Walterscheid 2580 CV Complete Pto Shaft Assy, 58"

Walterscheid 2580 CV Complete Pto Shaft Assy, 58"

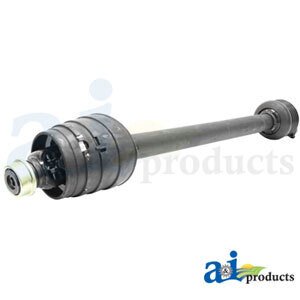

The A-WC584813A Walterscheid 2580 CV PTO Shaft Assembly is a premium constant velocity driveline engineered for smooth, high-angle power transfer in demanding agricultural applications. Built with a 2580 series CV design and star-style tubing, this shaft delivers reduced vibration, consistent rotational speed, and long-lasting durability—making it a solid match for rotary cutters and heavy-duty implements. With tractor and implement ends fully equipped, it’s ready to work right out of the gate (well…after you double-check the length like a responsible operator).

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: A-WC584813A
• Brand: Walterscheid
• Series: 2580 CV Series
• Product Type: Complete constant velocity (CV) PTO shaft assembly
• C-to-C Minimum Length: 48" (1210 mm)
• Total Collapsed Length: 58" (1462 mm)
• Total Length: 58"
• Tractor End Connection: 1-3/8" – 6 spline (AS Lock)
• Implement End Connection: 1-3/4" – 20 spline clamp yoke
• Tube Style: Star tube, Type B
• Size / Series: 2580
• Performance: Constant velocity design ensures smooth operation at varying angles with reduced vibration
• Compatibility: Fits John Deere rotary cutters and Walterscheid WWE series
• Construction: Heavy-duty driveline components for long service life under load
• Adjustability: May require cutting to proper length for correct fit and safe operation
• Installation Note: Ensure proper overlap of drive tubes to prevent bottoming out or separation
• Replaces Part Numbers:
  • John Deere: A-BP18399, A-BW14543, A-BW15803
  • Walterscheid: PM14507951, PM14517955, W258012100103-A
  • Rhino: A-00760452, A-00775301
  • Woods: A-1004935
  • Land Pride: A-826-117C
  • Other: A-02982291, 14507951, 14517955

Ideal For

• Rotary cutters and heavy-duty implements requiring CV PTO shafts
• Operators needing smooth power transfer at wide operating angles
• Equipment matched to Walterscheid 2580 series drivelines
• Users replacing OEM shafts across John Deere, Rhino, Woods, Land Pride, and others
• Anyone who prefers a shaft that runs smooth instead of shaking bolts loose over time
