WaterWorker HT-32B Well Pressure Tank, 32/82Gal, 16"X47"

WaterWorker HT-32B Well Pressure Tank, 32/82Gal, 16"X47"

WaterWorker Catalog

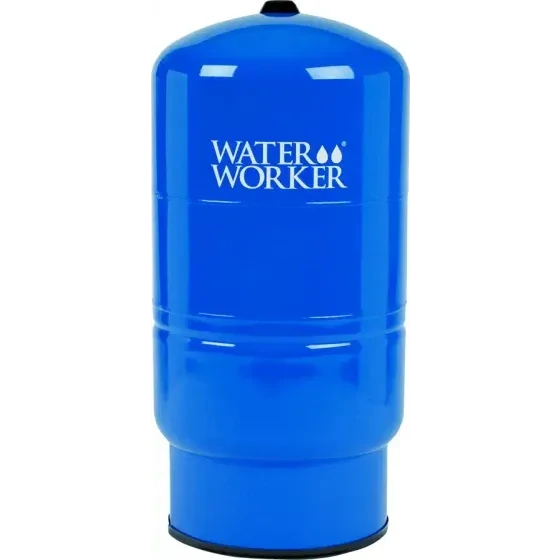

The WaterWorker HT-32B Well Pressure Tank is a reliable, residential-grade water storage solution designed to keep your water system running smoothly and efficiently. With a 32-gallon capacity (82-gallon equivalent drawdown class) and a heavy-duty diaphragm system, it helps maintain consistent water pressure while reducing pump cycling—because your well pump deserves a break now and then. Built with a durable steel shell, polypropylene liner, and weather-resistant finish, this tank is made for long-term performance in demanding environments, all while keeping your water clean and safe.

Country of Origin
Made in the U.S.A.

Key Features / Specifications

• Model / Part Number: HT-32B
• Brand: WaterWorker
• Product Type: Well pressure tank
• Capacity: 32 gallons (82-gallon equivalent class)
• Material: Steel tank with high-grade polypropylene liner
• Dimensions: 16 in diameter x 47 in height
• Connection Size: 1 in
• Connection Type: FNPT
• Working Pressure: Up to 100 PSI
• Temperature Rating: Up to 200°F
• Pre-Charge Pressure: Factory pre-charged to 38 PSI
• Diaphragm: Heavy-duty diaphragm for extended service life
• Seal Design: Locking ring ensures airtight diaphragm seal
• Liner: Non-metallic polypropylene liner for clean, fresh-tasting water
• Finish: Weather-resistant paint for corrosion resistance
• Base: Durable steel base for stability and support
• Certifications: NSF 61 listed, meets FDA requirements for potable water
• Warranty: 5-year limited warranty

Ideal For

• Residential well systems needing consistent water pressure and reduced pump cycling
• Homes requiring safe, potable water storage with NSF certification
• Installations in damp or utility environments where corrosion resistance matters
• Replacing or upgrading existing pressure tanks for improved system efficiency
• Anyone who prefers their water system to just work—without constant pump drama
