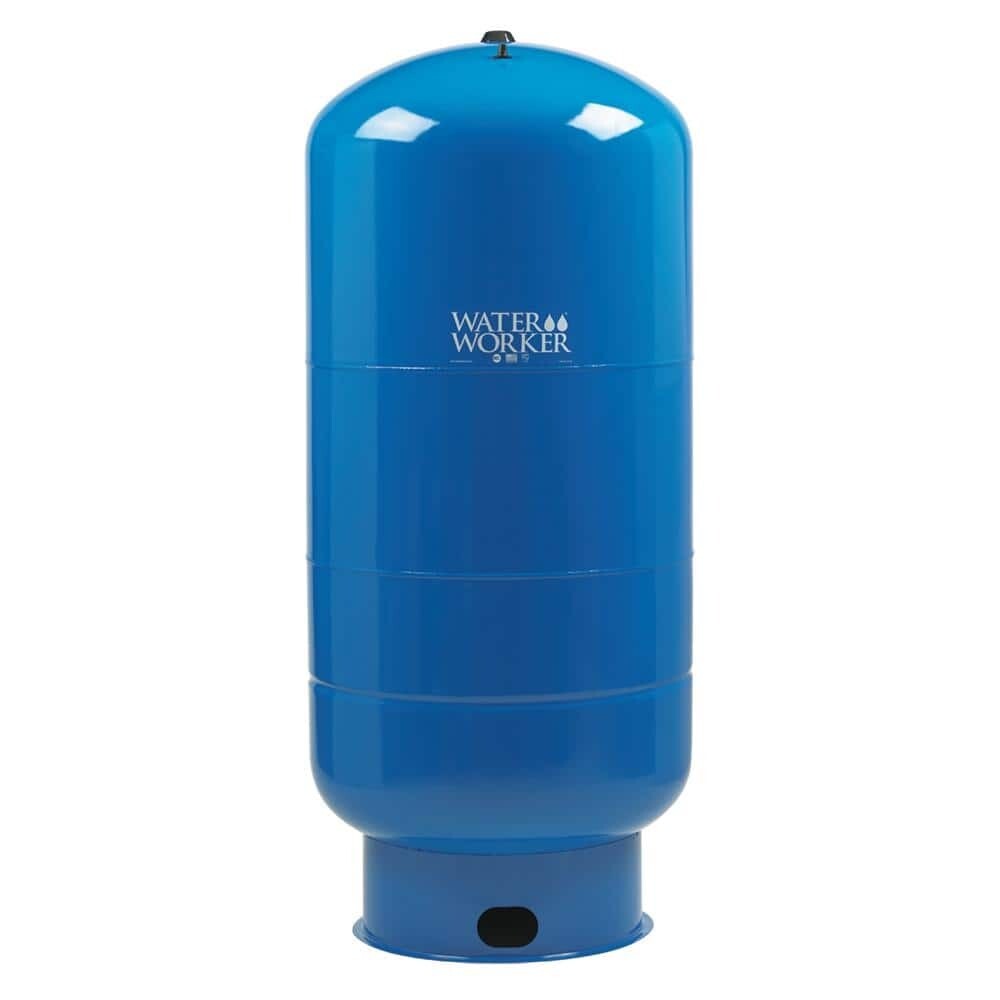

WaterWorker HT-86B Well Pressure Tank, 86/220Gal

WaterWorker HT-86B Well Pressure Tank, 86/220Gal, 27"X49"

The WaterWorker HT-86B Well Pressure Tank is a reliable, high-capacity pressure solution designed to keep your water system running smoothly without constant pump cycling. With an 86-gallon tank capacity (220-gallon equivalent system capacity) and a heavy-duty diaphragm, it delivers consistent pressure while helping extend pump life. Built with a steel shell, corrosion-resistant finish, and NSF-certified liner, it’s made for clean water delivery and long-term dependability—because your water system shouldn’t be the high-maintenance part of your day.

Country of Origin
Made in the U.S.A.

Key Features / Specifications

• Model / Part Number: HT-86B
• Brand: WaterWorker
• Product Type: Well pressure tank
• Tank Capacity: 86 gallons (220-gallon equivalent drawdown system)
• Max Pressure Rating: 100 PSI
• Factory Pre-Charge: 38 PSI
• Connection Size: 1-1/4 in
• Connection Type: FNPT
• Dimensions: 26–27 in diameter x 48–49 in height
• Material: Steel tank with high-grade polypropylene liner
• Diaphragm: Heavy-duty, long-life diaphragm
• Temperature Rating: Up to 200°F
• Seal Design: Locking ring for airtight diaphragm seal
• Finish: Weather-resistant painted steel
• Base: Durable steel base for stability
• Certification: NSF Standard 61 (potable water safe, meets FDA requirements)
• Installation: Easy installation design
• Warranty: 5-year limited warranty

Ideal For

• Residential well systems needing steady pressure and reduced pump cycling
• Homes requiring larger water reserves for consistent performance
• Installations where clean, potable water certification matters
• Damp or utility room environments needing corrosion resistance
• Anyone who prefers their water pressure to stay consistent—no surprises in the shower
