Wedge Anchor, 3/4"x8-1/2"

Wedge Anchor, 3/4"x8-1/2"

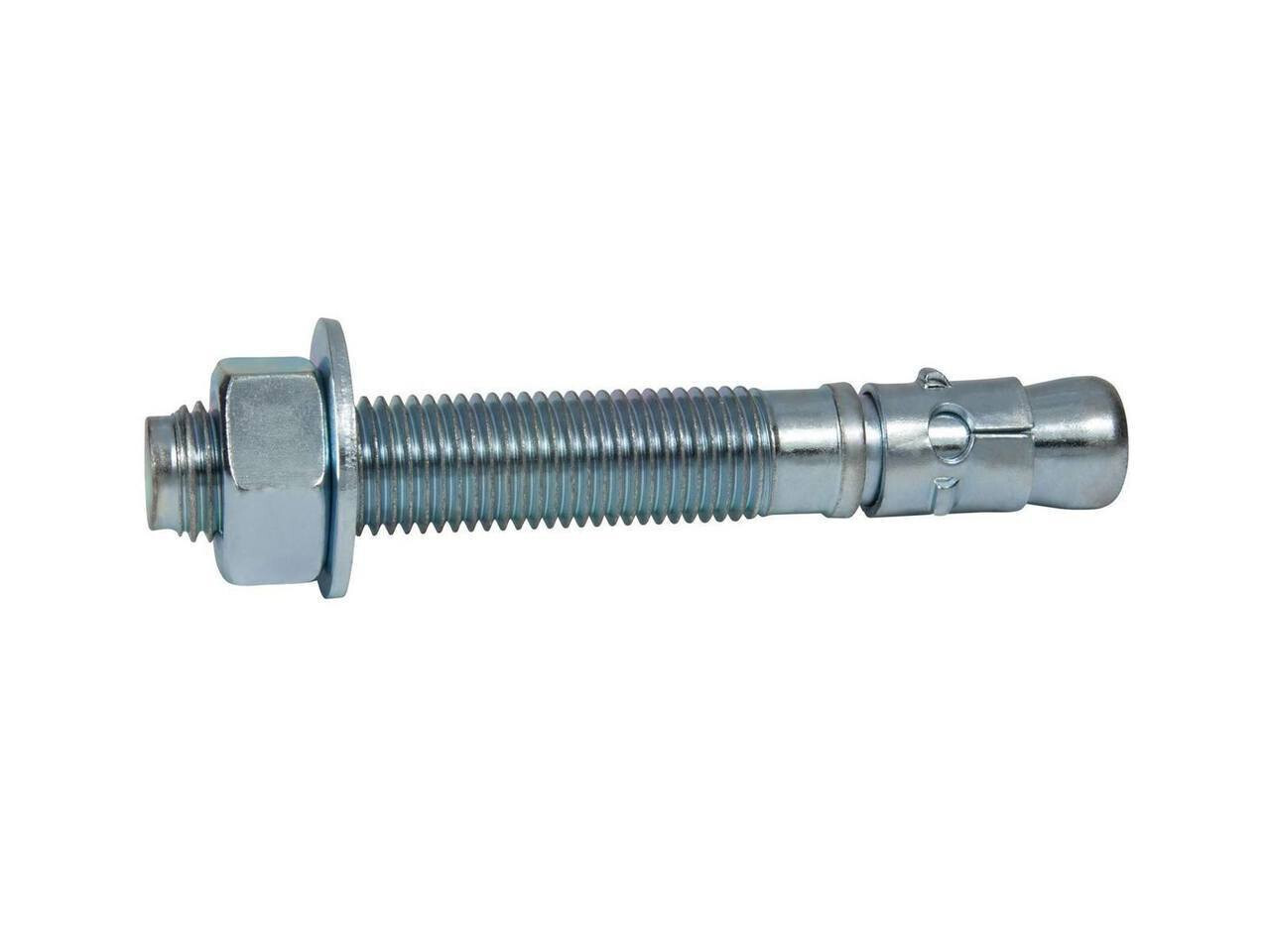

The WA34*812 CONFAST® Wedge Anchor is a heavy-duty concrete anchor designed for strong, permanent fastening into solid concrete surfaces. Measuring 3/4 in. diameter by 8-1/2 in. length, this anchor provides high holding strength for structural and equipment mounting applications. Constructed from zinc-plated carbon steel, it offers dependable corrosion resistance in dry environments, while the expansion wedge design ensures a tight, secure grip once installed. Each anchor comes packaged with a nut and washer for quick installation—because when fastening something to concrete, you generally want it staying exactly where you put it.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Size: WA34*812
• Brand: CONFAST®
• Product Type: Concrete wedge anchor
• Diameter: 3/4 in.
• Length: 8-1/2 in.
• Thread Size: 3/4"-10
• Thread Length: 4 in.
• Material: Carbon steel
• Finish: Zinc plated
• Environment: Dry locations
• Application Surface: Concrete only
• Bit Size Required: 3/4 in.
• Minimum Embedment: 3-1/4 in.
• Maximum Fixture Thickness: 4-1/2 in.
• Minimum Edge Distance: 3-3/4 in.
• Minimum Spacing Between Anchors: 7-1/2 in.
• Wrench Size for Nut: 1-1/8 in.
• Maximum Torque: 150–175 ft-lb
• Pull-Out Strength (2000 PSI Concrete): 4978 lb (average ultimate)
• Shear Strength (2000 PSI Concrete): 9378 lb (average ultimate)
• Installation Hardware: Includes nut and washer
• Installation Note: Hole size equals anchor diameter for easy drilling

Ideal For

• Anchoring equipment, machinery, or structural components into concrete
• Mounting base plates, posts, and heavy fixtures
• Agricultural and industrial installations
• Permanent fastening in solid concrete surfaces
• Installations where once it’s tightened down, it’s not planning on going anywhere
