Wedge Anchor, 5/8"X8-1/2"

Wedge Anchor, 5/8"X8-1/2"

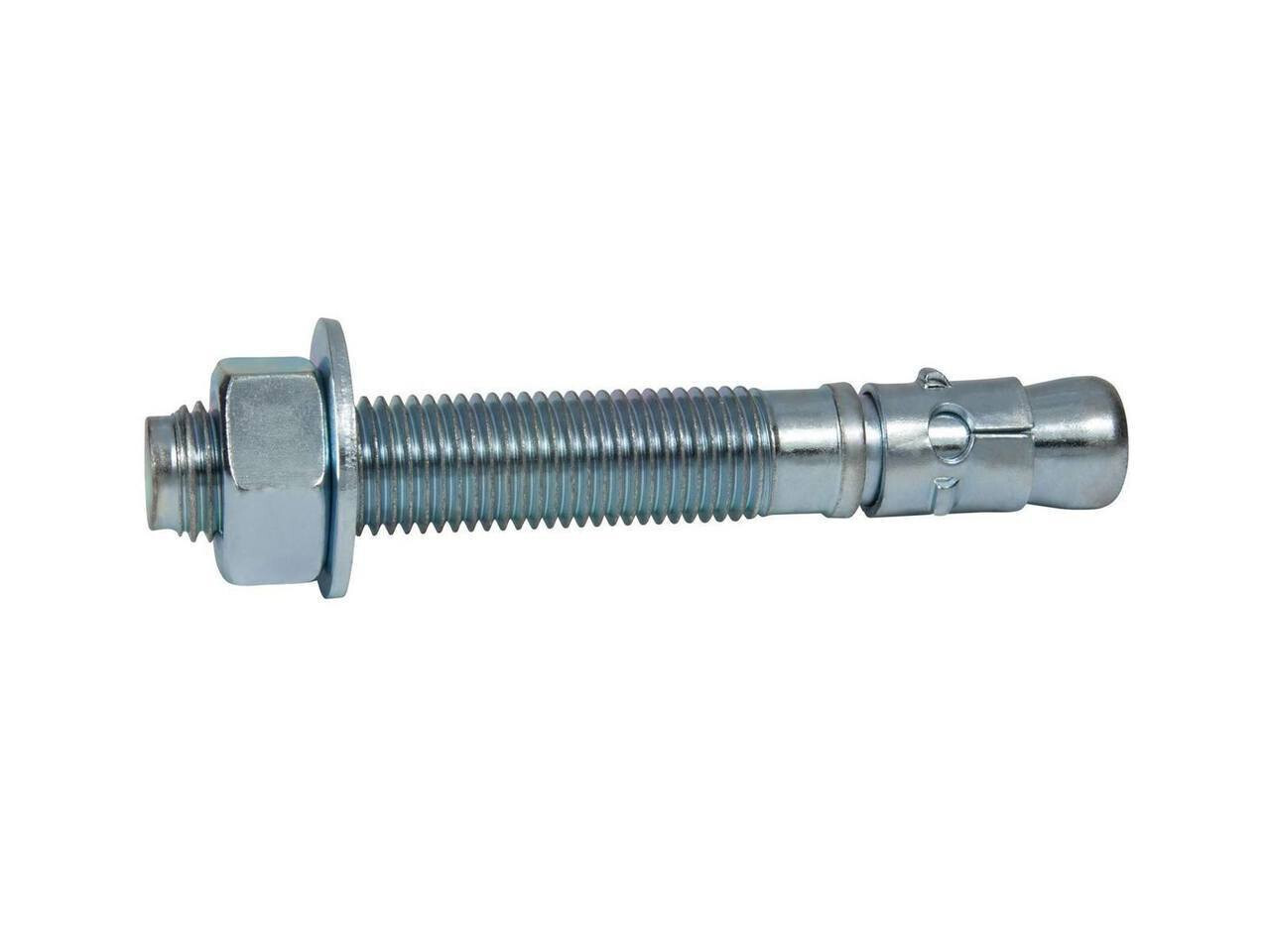

The WA58*812 Wedge Anchor, 5/8" x 8-1/2", is a high-performance fastening solution designed for concrete-only applications. Made from carbon steel zinc-plated material, this wedge anchor ensures superior strength and durability, making it perfect for securing fixtures in concrete surfaces. With a thread length of 4" and maximum torque ranging from 75 to 90 ft./lbs., it provides reliable anchoring with impressive pull-out and shear values, ensuring a secure hold even under heavy stress.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: WA58*812
• Brand Name: CONFAST®
• Product Type: Wedge anchor
• Diameter: 5/8"
• Length: 8-1/2"
• Material: Carbon steel, zinc-plated
• Bit Size: 5/8"
• Wrench Size for Nut: 15/16"
• Minimum Embedment: 2-3/4"
• Maximum Fixture Thickness: 5-1/8"
• Minimum Fixture Hole Diameter (In Place): 7/8"
• Minimum Fixture Hole Diameter (Hole Spotted): 5/8"
• Maximum Torque: 75 - 90 ft./lbs.
• Thread Length: 4"
• Environment: Dry
• Primary Use: Concrete only
• Pull-Out (2000 PSI Concrete): 3749 lbs.
• Shear (2000 PSI Concrete): 6198 lbs.

Ideal For

• Concrete applications where a strong, reliable anchor is required
• Securing fixtures in dry environments needing maximum torque strength
• Users looking for a durable, zinc-plated wedge anchor for heavy-duty concrete fastening
• Projects requiring precise, durable anchoring with pull-out and shear resistance up to 3749 lbs. and 6198 lbs. respectively
