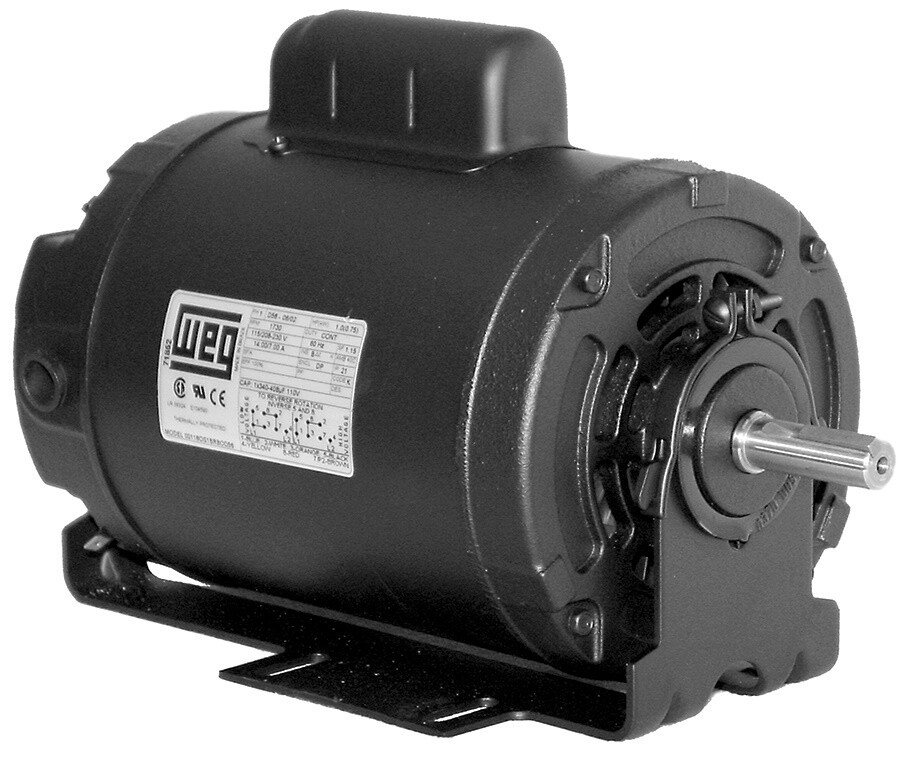

WEG 1HP Poultry Fan Electric Motor, 1800RPM
SKU 00118AS
$288.29
In stock: 3 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
WEG 1HP Poultry Fan Electric Motor, 1800RPM
Product Details
UPC: 00118AS1BRBPF56-S
Brand: WEG
Weight: 33.00 lbs
WEG 1HP Poultry Fan Electric Motor w/Resilient Base, 1800RPM
Electric Motors
| Frame | 56 |
|---|---|
| Output | 1 HP (0.75 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1730 rpm |
| Slip | 3.89 % |
| Rated voltage | 115/208-230 V |
| Rated current | 13.7/7.52-6.85 A |
| L. R. Amperes | 91.8/50.4-45.9 A |
| LRC | 6.7x(Code M) |
| No load current | 9.60/4.14-4.80 A |
| Rated torque | 3.04 ft.lb |
| Locked rotor torque | 280 % |
| Breakdown torque | 270 % |
| Locked rotor time | 14s (cold) 8s (hot) |
| Moment of inertia (J) | 0.1044 sq.ft.lb |
|---|---|
| Design | L |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC418 - TEAO |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Approx. weight³ | 33.1 lb |
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 62.0 | 68.0 | 70.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.48 | 0.60 | 0.68 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Bearing cap | No-Without Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Resilient Base | With |
| Overload protector (phenolic) | Automatic |
| Fan material | Without fan |
| NDE bearing Seal | Without Bearing Seal |
| DE bearing Seal | V'Ring |
| CABLE PRESS MATERIAL | Sem |
