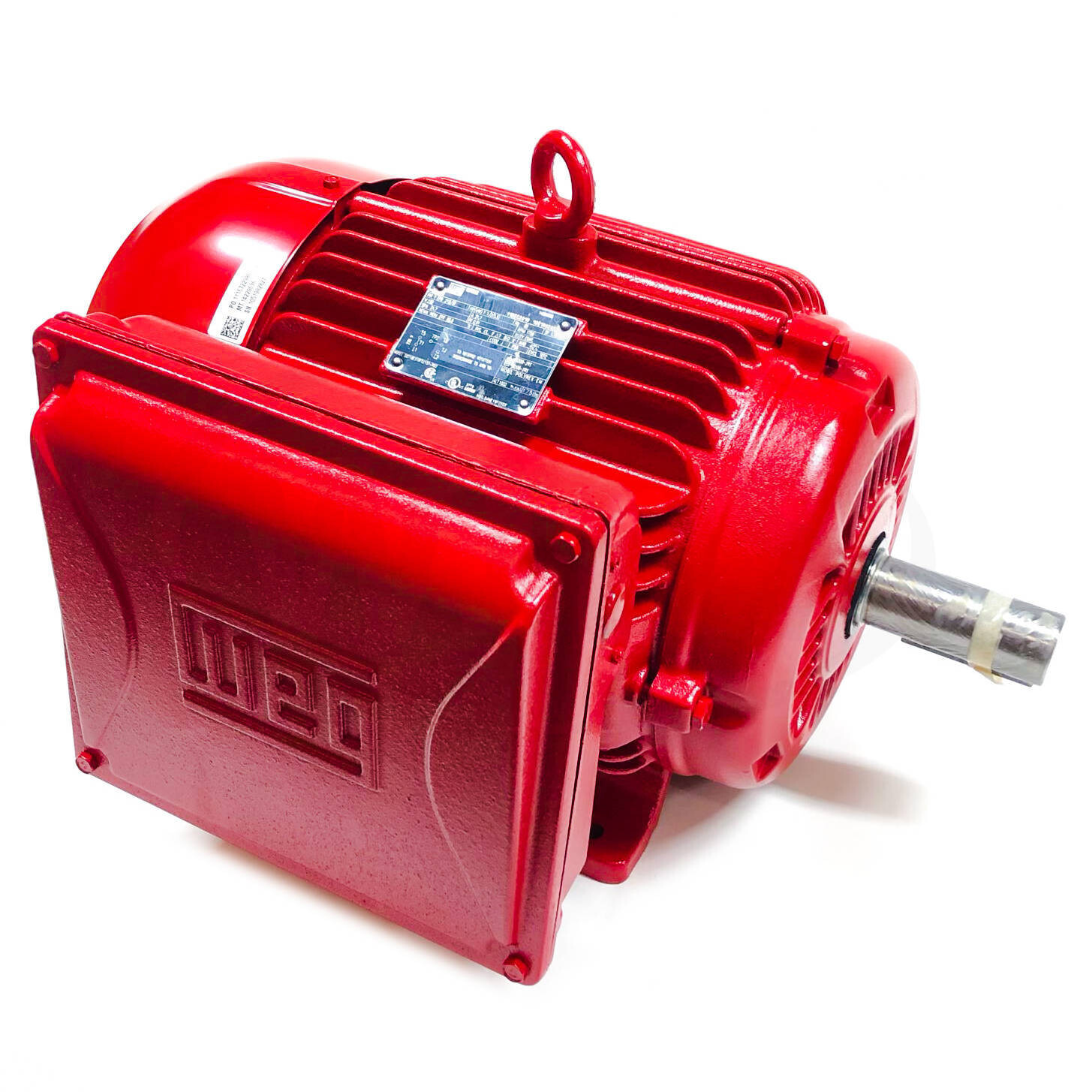

WEG 7.5HP Farm Duty Electric Motor, 1800RPM
SKU 00718ES
$877.29
In stock: 1 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
WEG 7.5HP Farm Duty Electric Motor, 1800RPM
Product Details
UPC: 00718ES1DFD215T-W22
Brand: WEG
Weight: 180.00 lbs
Electric Motors
| Frame | 213/5T |
|---|---|
| Output | 7.5 HP (5.5 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1750 rpm |
| Slip | 2.78 % |
| Rated voltage | 230 V |
| Rated current | 31.7 A |
| L. R. Amperes | 244 A |
| LRC | 7.7x(Code J) |
| No load current | 12.8 A |
| Rated torque | 22.5 ft.lb |
| Locked rotor torque | 370 % |
| Breakdown torque | 260 % |
| Locked rotor time | 10s (cold) 6s (hot) |
| Moment of inertia (J) | 1.09 sq.ft.lb |
|---|---|
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 63.0 dB(A) |
| Approx. weight³ | 180 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 75.6 | 81.0 | 83.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.82 | 0.88 | 0.91 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 3003 207A (ISO 12944 - C3) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Bearing cap | No-Without Bearing Cap |
| Drip Cover | Without |
| Overload protector (phenolic) | Manual |
| Fan material | Plastic |
| Screw cap | CARBON STEEL SAE 1010/20 |
| NDE bearing Seal | V'Ring |
| DE bearing Seal | V'Ring |
| CABLE PRESS MATERIAL | Sem |
Bearing details
| Drive End | Non Drive End | |
|---|---|---|
| Bearing type | 6308 2RS | 6206 2RS |
| DE bearing Seal | V'Ring | V'Ring |
| Lubrication interval | - | - |
| Lubricant amount | - | - |
| Grease Type | Mobil Polyrex EM | |
