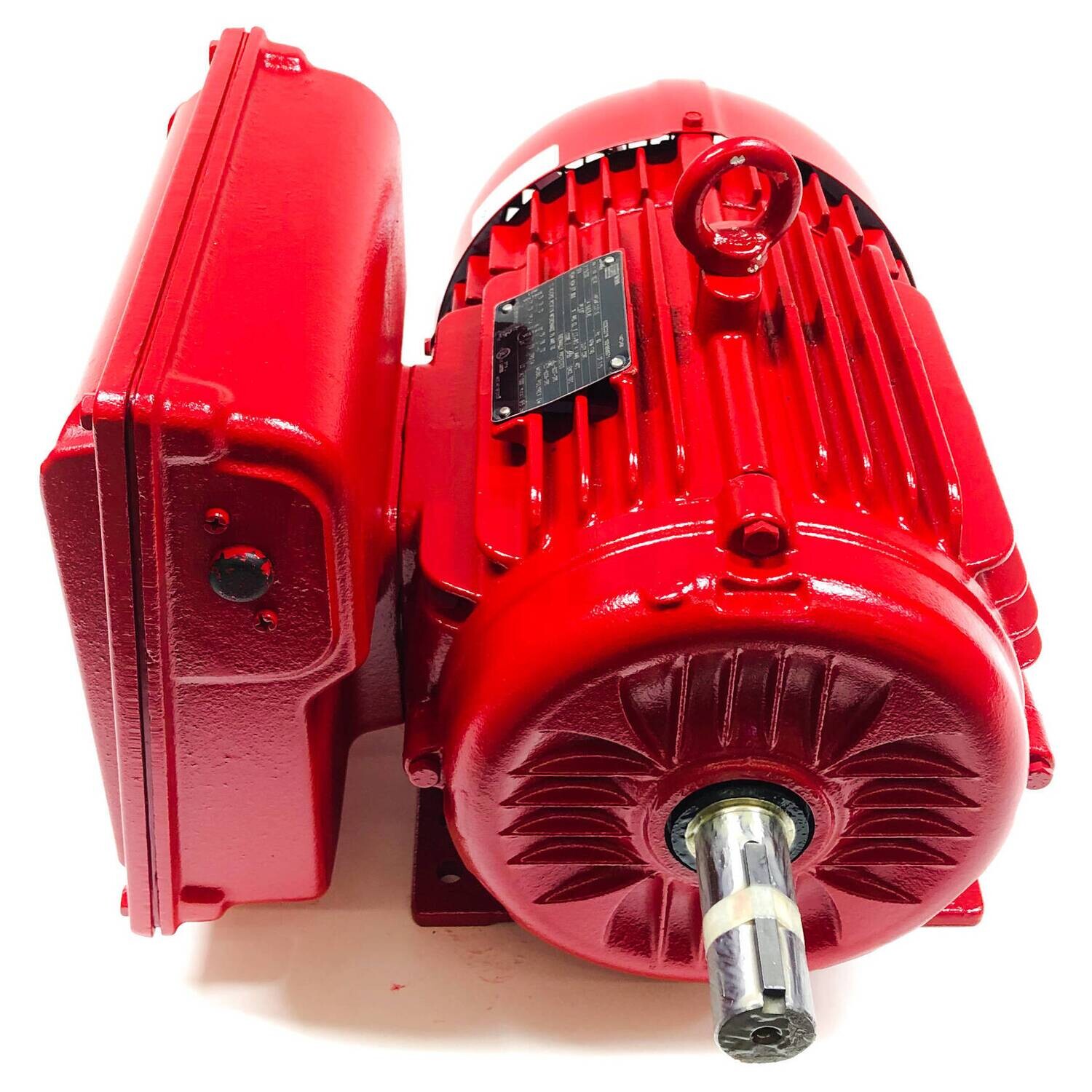

WEG Electric Motor, 5HP 1740RPM 184T Frame
SKU 00518ES
$729.79
In stock: 1 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
WEG Electric Motor, 5HP 1740RPM 184T Frame
Product Details
UPC: 00518ES1DFD184T-W22
Brand: WEG
Weight: 119.00 lbs
WEG Electric Motor, 5HP 1800RPM, 184T Frame, 21.4FLA, 230V
Electric Motors
| Frame | 182/4T |
|---|---|
| Output | 5 HP (3.7 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1730 rpm |
| Slip | 3.89 % |
| Rated voltage | 230 V |
| Rated current | 21.4 A |
| L. R. Amperes | 139 A |
| LRC | 6.5x(Code H) |
| No load current | 8.00 A |
| Rated torque | 15.2 ft.lb |
| Locked rotor torque | 360 % |
| Breakdown torque | 235 % |
| Locked rotor time | 12s (cold) 7s (hot) |
| Moment of inertia (J) | 0.4357 sq.ft.lb |
|---|---|
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 60.0 dB(A) |
| Approx. weight³ | 118 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 72.5 | 78.5 | 80.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.89 | 0.93 | 0.94 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 3003 207A (ISO 12944 - C3) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Bearing cap | No-Without Bearing Cap |
| Drip Cover | Without |
| Overload protector (phenolic) | Manual |
| Fan material | Plastic |
| Screw cap | CARBON STEEL SAE 1010/20 |
| NDE bearing Seal | V'Ring |
| DE bearing Seal | V'Ring |
| CABLE PRESS MATERIAL | Sem |
Bearing details
| Drive End | Non Drive End | |
|---|---|---|
| Bearing type | 6207 2RS | 6206 2RS |
| DE bearing Seal | V'Ring | V'Ring |
| Lubrication interval | - | - |
| Lubricant amount | - | - |
| Grease Type | Mobil Polyrex EM | |
