Wiper Seal, 1.00"X1.272"X.107"

Wiper Seal, 1.00"X1.272"X.107"

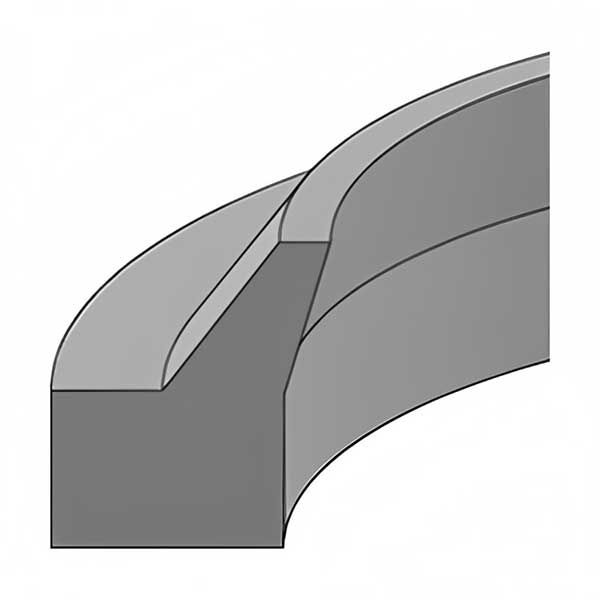

The AN-09 Wiper Seal is a rod wiper ring designed for hydraulic cylinders, helping keep dirt, dust, and contaminants from entering the system while protecting internal seals and components. Designed for 1.000 in rod sizes, this wiper seal removes debris from the rod surface as it retracts into the cylinder, helping extend seal life and maintain smooth hydraulic operation. With a wide temperature range and durable construction, it’s a small but critical component that keeps hydraulic systems clean and functioning—because grit inside a hydraulic cylinder rarely ends well.

Country of Origin
Varies by production batch

Key Features / Specifications

• Product Type: Hydraulic rod wiper seal / wiper ring
• Product Designation: AN-09
• Rod Size Compatibility: 1.000 in
• Nominal Inside Diameter (ID): 1.000 in
• Nominal Outside Diameter (OD): 1.250 in
• Housing Diameter (G): 1.272 in
• Nominal Height: 7/64 in (0.109 in)
• Groove Width: 0.107 in
• Throat Diameter (F): 1.148 in
• Nominal Cross Section: 0.187 in
• Thickness: 0.104 in
• Operating Speed: Up to 3 ft/sec
• Temperature Range: -40°F to +200°F
• Weight: 0.0024 lb

Compatible / Cross Reference Part Numbers

• 940-9
• AN-09U2145
• 959-1.00
• HE13400
• 356-01-0131
• 60559000
• 3053432
• 959-9
• WI94009
• 9025
• 4915246
• 74908498
• 4908498
• 74915246
• 80-1009
• 80-1010
• WA021000
• SL-WS-058
• 1098745
• 2550005
• RWAN-09

Ideal For

• Hydraulic cylinders with 1 in rods
• Keeping contaminants out of hydraulic systems
• Agricultural, construction, and industrial equipment
• Hydraulic cylinder repair and seal replacement
• Situations where keeping dirt out of the cylinder is much cheaper than rebuilding it later
