Wiper Seal, 1-1/2"X1-7/8"X3/16"

Wiper Seal, 1-1/2"X1-7/8"X3/16"

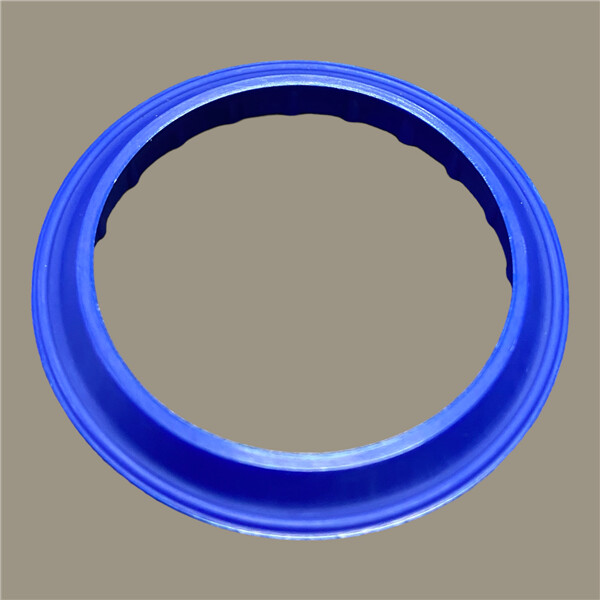

The ST-150 Wiper Seal (1-1/2" x 1-7/8" x 3/16") is a precision-molded rod wiper designed to keep contaminants out of hydraulic cylinders and sealing systems. Constructed from 90A durometer urethane, this Style ST wiper ring offers the flexibility needed to snap easily into a groove while remaining tough enough to withstand demanding rod wiping applications. Its design removes dirt, moisture, and debris from the rod surface before they can enter the cylinder, helping protect internal seals and extend equipment life. Some variations are available in fluorocarbon for higher temperature applications, while versions with slotted heels allow excess hydraulic fluid to bypass the seal to prevent blowout—because hydraulic systems work best when the only thing moving in and out is the rod, not the dirt.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: ST-150
• Product Type: Hydraulic Rod Wiper Seal
• Style: ST Wiper Ring
• Rod Size (ID): 1.500 in. (1-1/2 in.)
• Outside Diameter (OD): 1.875 in. (1-7/8 in.)
• Nominal Height: 0.188 in. (3/16 in.)
• Groove Width: 0.187 in.
• Housing Diameter: 1.872 in.
• Throat Diameter: 1.745 in.
• Overall Height: 0.305 in.
• Material: Urethane (90A durometer) with optional fluorocarbon variants
• Temperature Range:
  • Urethane: -40°F to +200°F
  • Fluorocarbon: -20°F to +400°F
• Maximum Speed: 3 ft/sec
• Function: Wipes contaminants from rod surface to protect internal seals
• Design Feature: Flexible construction allows easy installation while maintaining strong wiping performance
• Alternative Manufacturer Cross References: Includes D-01500, D-01500/520, D-01500/V, D-1500UR95, U-1500, D-1500, DT-1500, 375-9026-108, YD00000150, 356-01-0048, ICL 150 187, and others

Ideal For

• Hydraulic cylinders in agricultural, industrial, and construction equipment
• Systems requiring effective rod wiping to keep dirt and debris out of seals
• Maintenance and repair of hydraulic actuators and rod assemblies
• Applications needing durable urethane seals for long service life
• Technicians who know that keeping contaminants out is far cheaper than rebuilding a hydraulic cylinder later
