Wiper Seal, 1-1/4"X1-11/16"X3/16"

Wiper Seal, 1-1/4"X1-11/16"X3/16"

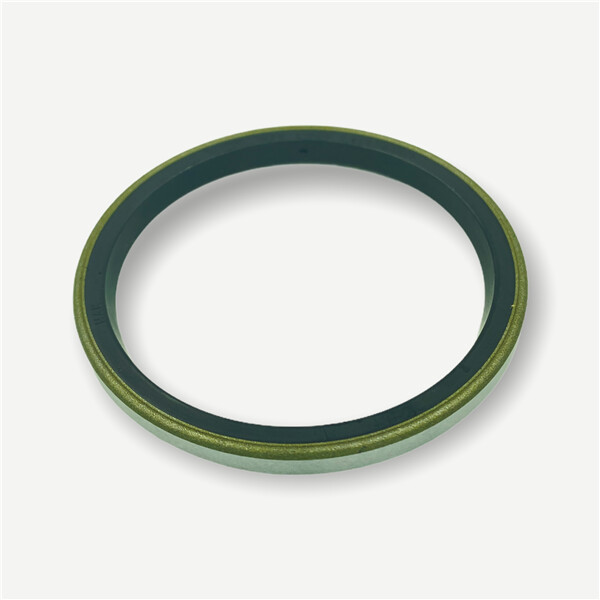

The MCN-1253 Wiper Seal is a metal-clad rod wiper ring designed to protect hydraulic cylinders by keeping contaminants out while maintaining smooth rod operation. Sized for a 1-1/4" rod, this seal features a durable rubber wiping lip bonded to a metal outer shell for a secure press fit in the housing. Built to perform across a wide temperature range, it helps extend equipment life by preventing dirt, dust, and moisture from entering the system.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: MCN-1253
• Seal Type: Metal Clad Wiper – Rubber Lip
• Nominal ID (A): 1-1/4" (1.250")
• Nominal OD (B): 1-11/16" (1.688")
• Nominal Height (C): 3/16" (0.188")
• Rod Size: 1.250"
• Housing Diameter (G): 1.688"
• Groove Width (D): 0.188"
• Material: Rubber (lip) with metal-clad outer shell
• Temperature Range: -40°F to +240°F
• Maximum Speed: 3 ft/sec
• Weight: 0.016755 lbs
• Manufacturer Cross References: J12501687187/N, MC1250X1687X-187N, ME1250GF-N, MCRW12501687-187, 18765, RCM-324305-N, WI12516812 CAT, 16074-220, WJSI125168-187
• Part Number Format: (Prefix) – (Size)

Ideal For

• Protecting 1-1/4" hydraulic cylinder rods
• Equipment operating in dusty or dirty environments
• Applications requiring a secure metal-clad press fit
• Extending hydraulic system life by preventing contaminant intrusion
