Wiper Seal, 1-1/4"X1-3/4"X1/4"

Wiper Seal, 1-1/4"X1-3/4"X1/4"

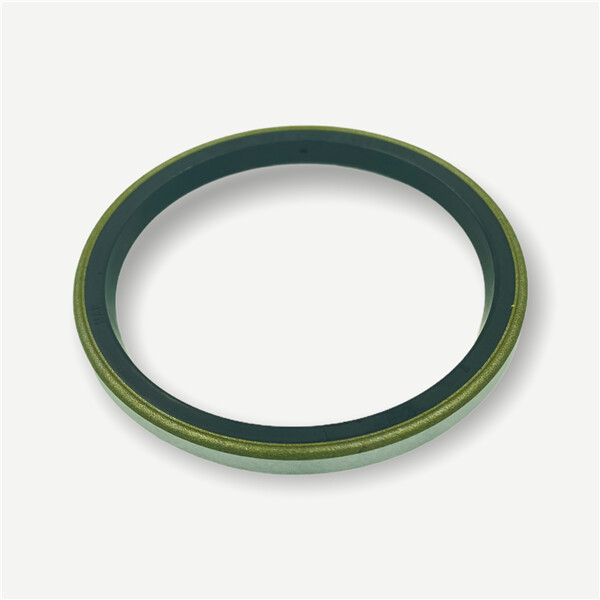

The MCN-1254 Metal-Clad Wiper Seal (1-1/4" × 1-3/4" × 1/4") is designed to protect hydraulic and pneumatic systems by preventing dirt, debris, and contaminants from entering the cylinder as the rod retracts. Featuring a metal-clad outer case with a flexible rubber wiping lip, this seal provides durable support and effective rod cleaning in demanding environments. Built to fit 1.250" rod applications, the wiper removes contaminants before they can reach internal seals, helping extend the life of hydraulic components. With a wide operating temperature range and dependable wiping action, it’s a simple component that plays a big role in keeping equipment running smoothly—because keeping dirt out of hydraulics is always easier than fixing the damage it causes.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: MCN-1254
• Product Type: Metal-clad hydraulic rod wiper seal
• Seal Style: MCN wiper ring
• Rod Size (ID): 1.250 in. (1-1/4 in.)
• Outside Diameter (OD): 1.750 in. (1-3/4 in.)
• Height / Thickness: 0.250 in. (1/4 in.)
• Groove Width: 0.250 in.
• Housing Diameter: 1.750 in.
• Construction: Metal-clad case with rubber wiping lip
• Material: Rubber sealing element
• Temperature Range: -40°F to +240°F
• Maximum Speed: 3 ft/sec
• Application: Rod wiper for hydraulic or pneumatic cylinders
• Approximate Weight: 0.0258 lb

Interchangeable Manufacturer Numbers

• J12501750250/N
• MC1250X1750X-250N
• ME1250HH-N
• MCRW12501750-250
• 199854
• SW-00114
• 750-0391
• RCM-324406-N
• WI125175162CAT
• 001 199854
• 73003714
• 3020

Ideal For

• Hydraulic cylinders requiring rod contamination protection
• Agricultural, construction, and industrial equipment
• Preventing dust, mud, and debris from entering hydraulic systems
• Replacement or repair of rod wiper seals in cylinders
• Anyone who knows that keeping dirt out of hydraulics saves a lot of expensive headaches later
