Wiper Seal, 1-1/8"X1-1/2"X3/16"

Wiper Seal, 1-1/8"X1-1/2"X3/16"

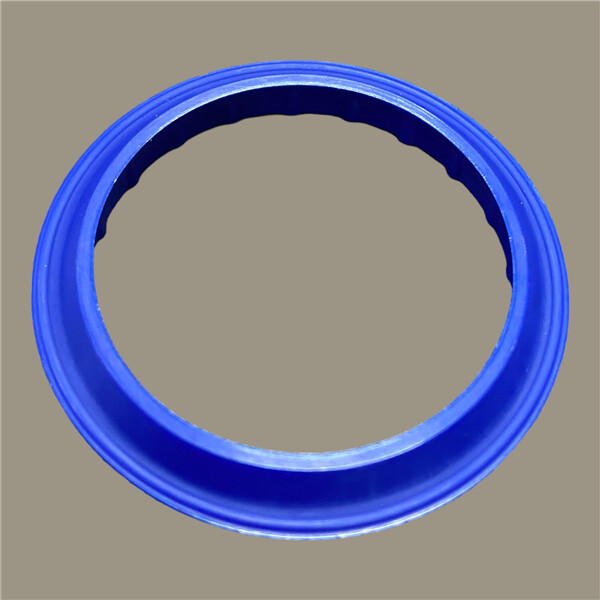

The ST-112 Wiper Seal is a precision hydraulic rod wiper designed to keep dirt, dust, and contaminants from entering hydraulic cylinders while wiping excess fluid from the rod during operation. Manufactured from durable 90A durometer urethane, this wiper ring is flexible enough to snap easily into a groove while remaining tough enough to handle demanding rod-wiping applications. Designed for a 1-1/8" rod, it helps extend seal life and maintain proper hydraulic system performance by keeping contaminants out—because the best hydraulic problems are the ones that never make it inside the cylinder.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: ST-112
• Product Type: Hydraulic rod wiper seal
• Style: ST wiper ring
• Rod Size: 1.125" (1-1/8")
• Inner Diameter (ID): 1.125"
• Outer Diameter (OD): 1.500"
• Nominal Height: 0.188" (3/16")
• Overall Height (C1): 0.305"
• Groove Width: 0.187"
• Housing Diameter: 1.497"
• Throat Diameter: 1.370"
• Material: 90A durometer urethane
• Optional Material Variant: Fluorocarbon (V-tagged versions)
• Operating Speed: Up to 3 ft/sec
• Temperature Range (Urethane): -40°F to +200°F
• Temperature Range (Fluorocarbon): -20°F to +400°F
• Function: Removes contaminants and excess fluid from hydraulic cylinder rods

Ideal For

• Hydraulic cylinders in agricultural and industrial equipment
• Preventing dirt and debris from entering hydraulic systems
• Rod sealing systems requiring reliable contamination control
• Hydraulic maintenance and seal replacement
• Situations where keeping grit out of the cylinder saves seals, downtime, and a lot of unnecessary repairs
