Wiper Seal, 1.250X1.500X0.109

Wiper Seal, 1.250X1.500X0.109

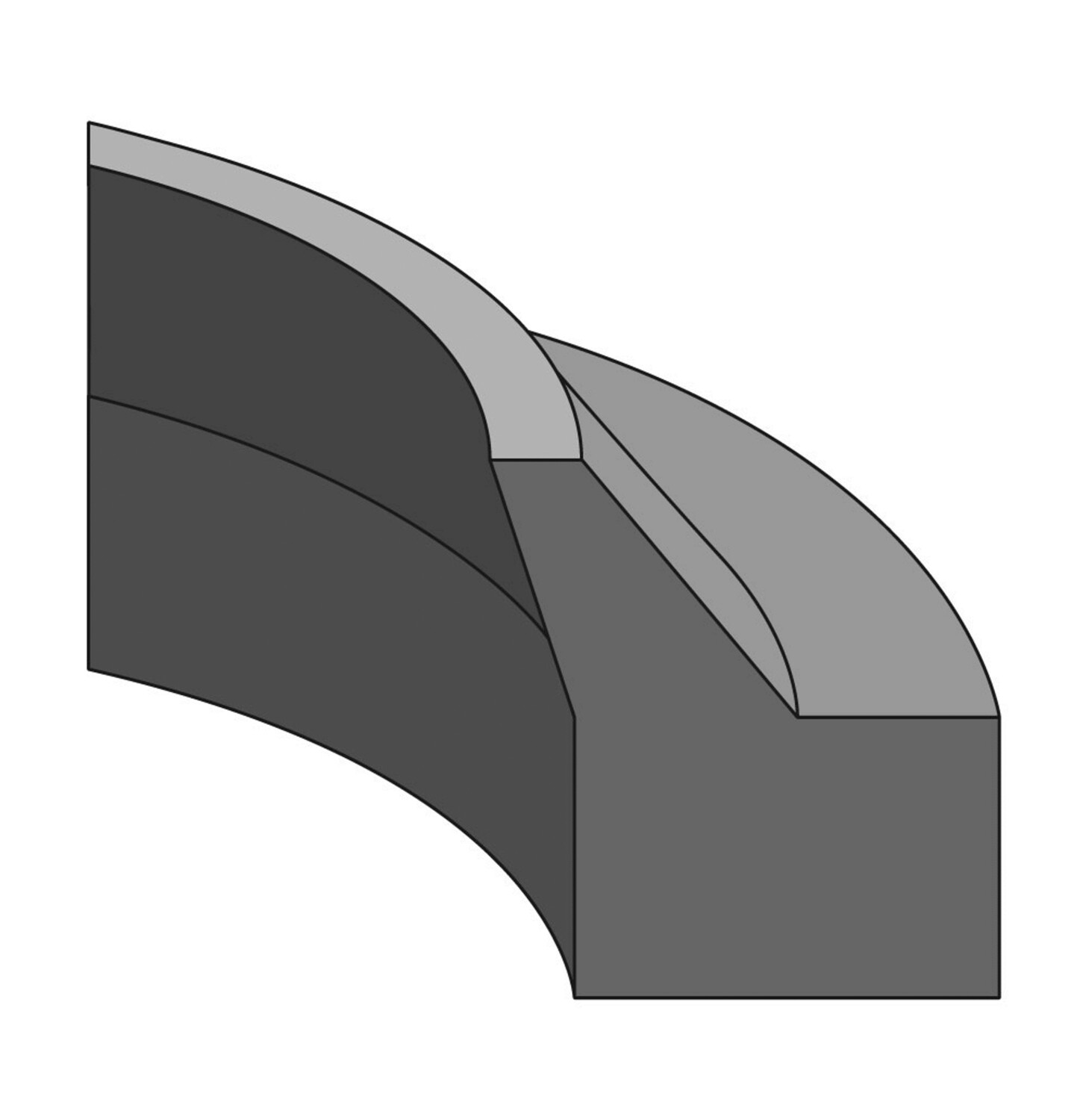

The AN-13 Wiper Seal (1.250" x 1.500" x 0.109") is a hydraulic rod wiper designed to keep contaminants out of hydraulic cylinders while protecting internal seals and system performance. Installed at the cylinder opening, this wiper ring scrapes dirt, moisture, and debris from the rod during operation, preventing contamination from entering the hydraulic system. Built to fit 1.250" rods, the AN-13 helps extend seal life and maintain reliable cylinder performance—because hydraulic systems work best when the dirt stays outside where it belongs.

Country of Origin
Varies by production batch

Key Features / Specifications

• Product Name: AN-13 Wiper Seal
• Common MFG Numbers: 940-13, AN-13U2145, 959-1.25, 391-3881-101, 356-01-0240, 3038511, SW-00023, 80-1020, 2550007, 350-0006, RWAN-13
• Rod Size Compatibility: 1.250"
• Nominal Inside Diameter (A): 1.250" (1-1/4")
• Nominal Outside Diameter (B): 1.500" (1-1/2")
• Nominal Height (C): 0.109" (7/64")
• Thickness: 0.104"
• Nominal Cross Section: 0.187"
• Groove Width (D): 0.107"
• Housing Diameter (G): 1.522"
• Throat Diameter (F): 1.398"
• Operating Temperature Range: -40°F to +200°F
• Maximum Speed: 3 ft/sec
• Function: Removes dirt, debris, and moisture from hydraulic rods to protect internal seals
• Application: Designed for hydraulic cylinders using a 1.250" rod

Ideal For

• Hydraulic cylinder maintenance and rebuilds
• Protecting internal hydraulic seals from contamination
• Farm equipment, construction machinery, and industrial hydraulics
• Replacement of worn or damaged rod wiper seals
• Situations where keeping dirt out of a hydraulic cylinder saves a lot more time and money than letting it sneak inside and cause trouble later.
