Wiper Seal, 1-3/4"X2-1/4"X5/16"

Wiper Seal, 1-3/4"X2-1/4"X5/16"

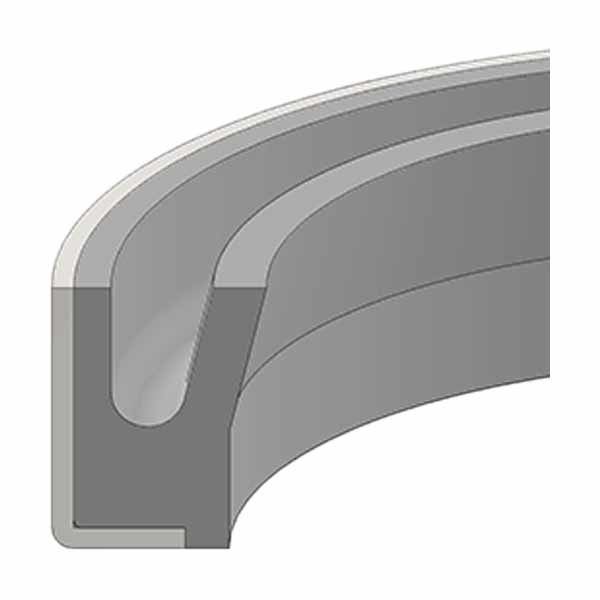

The MCU-1750-D Standard Wiper Ring is a rod wiper seal designed to help keep dirt, dust, and moisture out of hydraulic cylinders, protecting the primary seals and extending service life. Sized for a 1.750" rod with 1.750" ID x 2.250" OD x 0.313" height, it’s built for steady performance across a wide temperature range—because grit belongs on the ground, not in your cylinder.

Country of Origin
Varies by production batch

Key Features / Specifications

• Product / Part Number: MCU-1750-D
• Product Type: Standard wiper ring (rod wiper seal)
• Rod Size: 1.750"
• Dimensions:
  • ID (A Nom): 1-3/4" (1.750")
  • OD (B Nom / G Housing Diameter): 2-1/4" (2.250")
  • Height (C Nom): 5/16" (0.313")
  • Groove Width (D): 0.313"
• Temperature Range: -65°F to +230°F
• Max Speed: 3 ft/sec
• Weight: 0.0386 lb
• Alternate / Cross Reference Numbers (as provided): J17502250312, MC1750X2250-312U, ME1750HJ-P, MCW17502250-312, BD-MCU-1750-D, 391-3881-104, 375-3026-382, UMC1750, 356-01-0015, 3170354, SW-00196, WJSI175225-312, 2551017, 417480, RWL-01750
• Common Listing Description (as provided): RCW-90URE-1-3/4x2-1/4x5/16, STANDARD WIPERS

Ideal For

• Hydraulic cylinder applications needing a 1.750" rod wiper
• Replacing worn wipers to reduce contamination and help extend seal life
• Equipment operating across wide temperature swings (-65°F to +230°F)
• Rod systems where 3 ft/sec rated wiper speed is suitable
