Wiper Seal, 1-3/8"X1.677"X.107"

Wiper Seal, 1-3/8"X1.677"X.107"

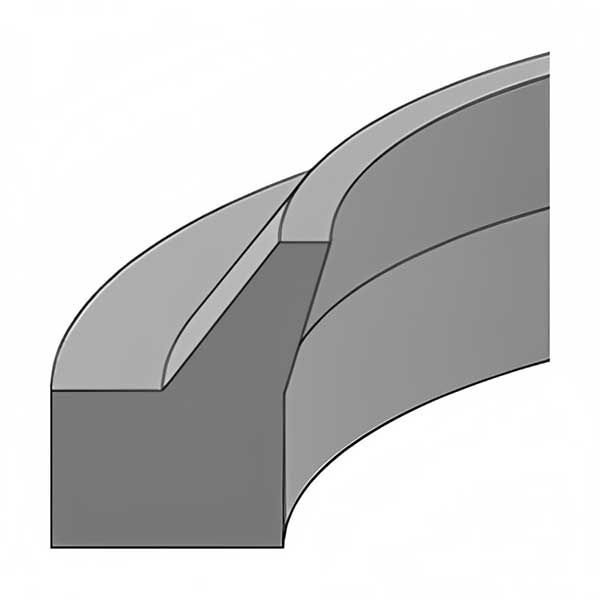

The AN-15 Wiper Seal is a precision rod wiper designed to protect hydraulic cylinders by removing dirt, moisture, and debris from the rod during operation. Constructed from durable 90A urethane, this seal provides excellent wear resistance and dependable wiping performance in demanding hydraulic environments. Sized for a 1-3/8 in. rod with approximately 1.677 in. housing diameter, the wiper helps prevent contaminants from entering the hydraulic system—because keeping dirt out of hydraulics is far easier than repairing the damage it causes.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: AN-15
• Product Type: Rod wiper seal
• Rod Diameter (ID): 1.375 in. (1-3/8 in.)
• Outside Diameter (OD): 1.677 in. (approx. 1-11/16 in.)
• Height / Thickness: 0.107 in. (approx. 7/64 in.)
• Groove Width: 0.107 in.
• Material: 90A urethane
• Housing Diameter: 1.677 in.
• Throat Diameter: 1.542 in.
• Cross Section: 0.187 in.
• Temperature Range: -40°F to +200°F
• Maximum Rod Speed: 3 ft/sec
• Function: Removes contaminants from hydraulic rod surfaces

Ideal For

• Hydraulic cylinder rod protection
• Agricultural and industrial hydraulic equipment
• Preventing dirt and debris from entering hydraulic systems
• Replacing worn rod wiper seals
• Equipment owners who know keeping contaminants out of hydraulics saves a lot of expensive headaches later
