Wiper Seal, 1.500X1.802X0.107

Wiper Seal, 1.500X1.802X0.107

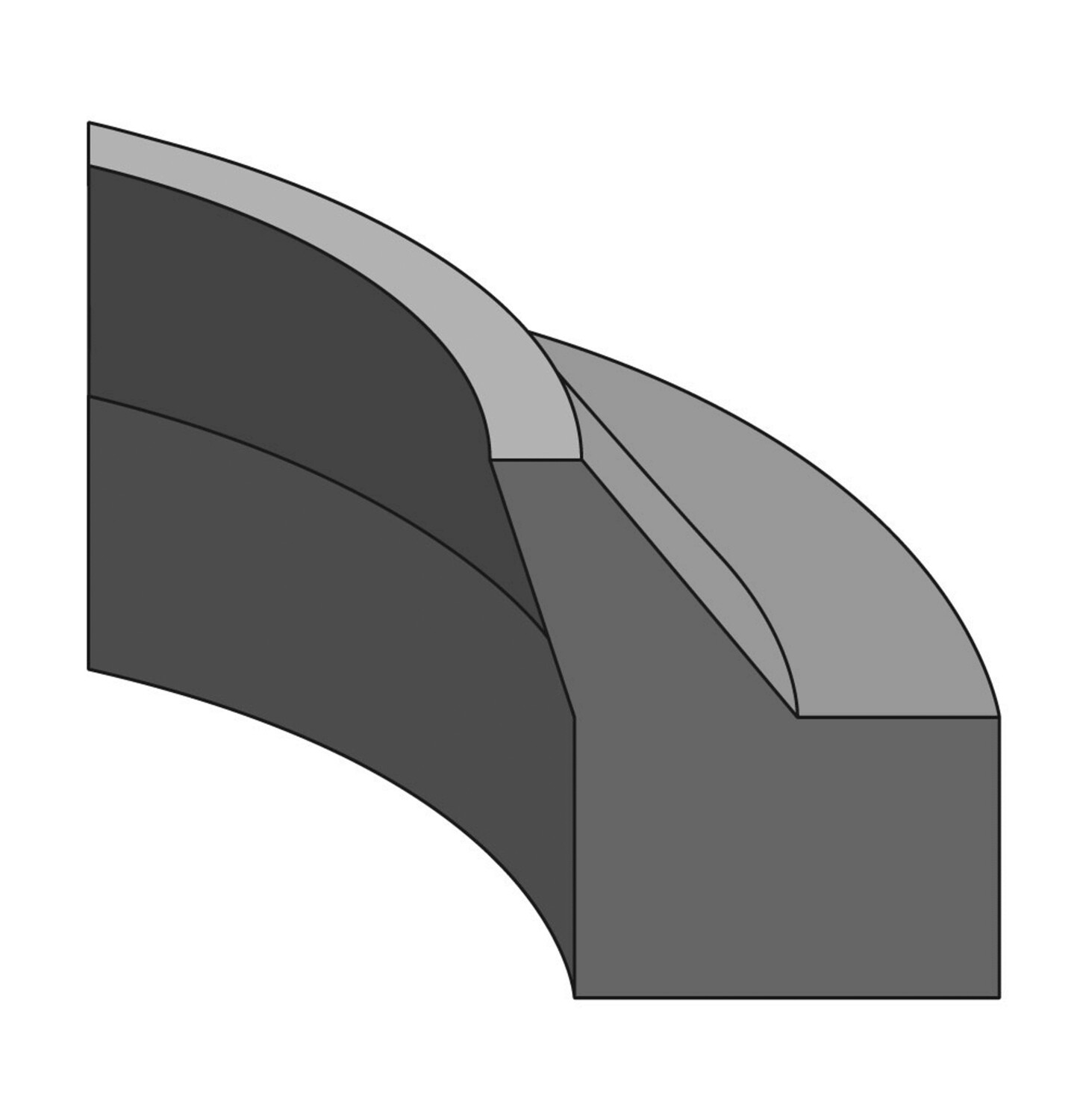

The AN-17 Wiper Seal is a high-quality, durable sealing solution designed for use with 1.500" rod size applications. This wiper seal has a 1.500" inner diameter, 1.802" outer diameter, and a 0.107" groove width. Made from 90A urethane, it is capable of withstanding temperatures ranging from -40°F to +200°F and is designed for high-speed applications up to 3 ft/sec. The seal’s design effectively prevents contaminants from entering hydraulic systems, ensuring the longevity of the equipment and smooth operation.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: AN-17
• Material: 90A Urethane
• Temperature Range: -40° to +200°F
• Speed: Up to 3 ft/sec
• Inner Diameter (ID): 1.500"
• Outer Diameter (OD): 1.802"
• Height (H): 0.107"
• Rod Size: 1.500"
• Groove Width: 0.107"
• Nominal Cross Section: 0.187"
• Material Variants:
  • ‘SH’ for slotted heel design
  • ‘V’ for fluorocarbon material
  • ‘B’ for carboxylated nitrile material
• Weight: 0.0039 lbs

Ideal For

• Hydraulic systems requiring durable, high-performance wiper seals for rod protection
• Equipment operating in harsh temperature environments needing a seal with wide temperature tolerance
• Applications requiring high-speed performance up to 3 ft/sec and precise sealing to protect against contaminants
