Wiper Seal, 2"

Wiper Seal, 2"

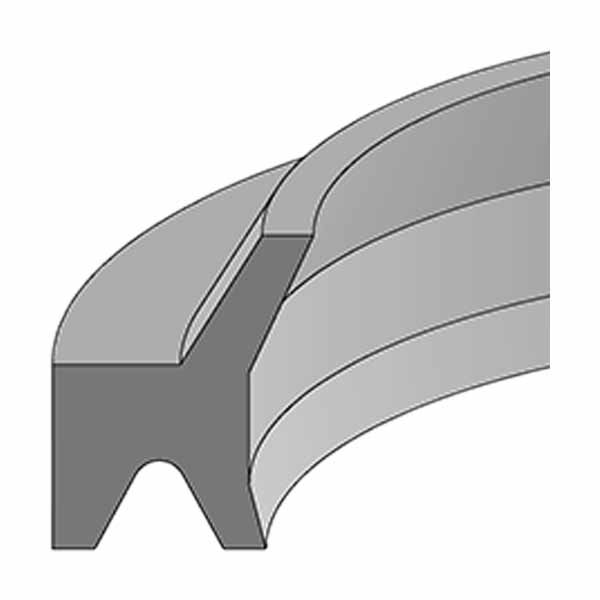

The HW-2000 Wiper Seal (2" Rod) is a heavy-duty hydraulic rod wiper ring designed to prevent dirt, dust, and debris from entering hydraulic cylinders during rod retraction. Manufactured from 90A urethane, this durable seal provides excellent wear resistance and effective contaminant removal in demanding equipment environments. Designed for 2.000" rod applications, the wiper removes contaminants from the rod surface before they can reach internal seals, helping extend the life of hydraulic components. With a temperature range from -40°F to +200°F and operating speeds up to 3 ft/sec, the HW-series wiper seal offers dependable protection for hydraulic systems—because keeping contaminants out of the cylinder is always easier than rebuilding one.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: HW-2000
• Product Type: Hydraulic rod wiper seal
• Seal Style: HW wiper ring
• Rod Size (ID): 2.000 in.
• Outside Diameter (OD): 2.375 in. (2-3/8 in.)
• Height / Thickness: 0.212 in.
• Groove Width: 0.218 in.
• Housing Diameter: 2.365 in.
• Throat Diameter: 2.135 in.
• Nominal Cross Section: 0.275 in.
• Material: 90A urethane
• Temperature Range: -40°F to +200°F
• Maximum Speed: 3 ft/sec
• Application: Rod wiping for hydraulic cylinders
• Approximate Weight: 0.0095 lb

Material Options

• N (Nitrile): -40°F to +225°F
• V (Fluorocarbon): -20°F to +350°F
• HT (High-Temp Urethane): -40°F to +225°F

Interchangeable Manufacturer Numbers

• 74-2000UR95
• H-02000
• H-2000
• 500437917
• RPH-516005
• WHPI200236-218U
• 249117
• RW-AY-02000

Ideal For

• Hydraulic cylinders requiring rod contamination protection
• Agricultural, construction, and industrial equipment
• Preventing mud, dust, and debris from entering hydraulic systems
• Replacement wipers in equipment cylinder repair
• Anyone who knows that keeping dirt out of hydraulics is far cheaper than rebuilding the cylinder later
