Wiper Seal, 2"X2-1/2"X1/4"

Wiper Seal, 2"X2-1/2"X1/4"

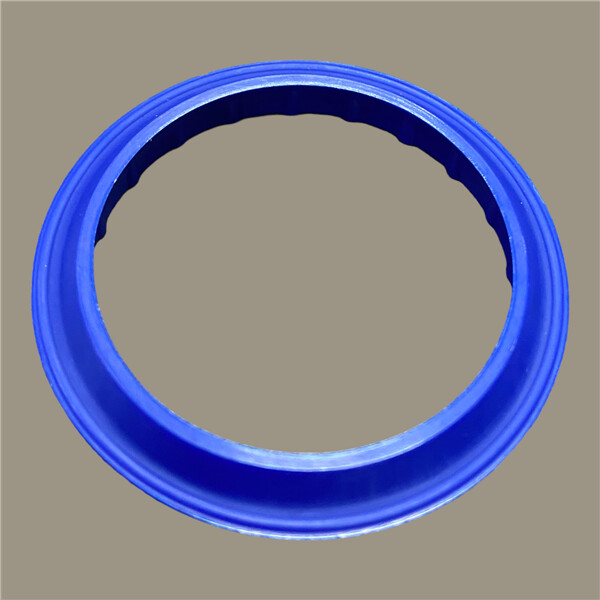

The ST-187 Wiper Seal is a precision-molded hydraulic rod wiper designed to protect cylinder systems by keeping dirt, dust, and contaminants out while wiping excess fluid from the rod during operation. Manufactured from durable 90A durometer urethane, this ST-style wiper ring combines flexibility for easy installation with the toughness needed for demanding rod-wiping applications. Designed for 1.875" rods, the seal measures 1.875" ID × 2.250" OD × 0.188" height, helping extend hydraulic cylinder life—because the best hydraulic repairs are the ones you never have to make.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: ST-187
• Product Type: Hydraulic rod wiper seal / wiper ring
• Style: ST Wiper Ring
• Rod Size: 1.875"
• Nominal ID (A): 1-7/8" (1.875")
• Nominal OD (B): 2-1/4" (2.250")
• Nominal Height (C): 3/16" (0.188")
• Overall Height (C1): 0.305"
• Groove Width (D): 0.187"
• Housing Diameter (G): 2.247"
• Throat Diameter (F): 2.120"
• Material: 90A Durometer Urethane (Fluorocarbon available in “V” tagged versions)
• Temperature Range (Urethane): -40°F to +200°F
• Temperature Range (Fluorocarbon): -20°F to +400°F
• Maximum Rod Speed: 3 ft/sec
• Approximate Weight: 0.011 lb
• Common Manufacturer References: D-01875, D-01875/520, D-01875/V, D-1875UR95, DX-01875, U-1875, D-1875, DT-1875, WDSI187225-187, 80-0027, EWD-01875

Ideal For

• Hydraulic cylinders requiring dependable rod wiping protection
• Preventing dirt, dust, and debris from entering hydraulic systems
• Agricultural, construction, and industrial hydraulic equipment
• Maintaining longer seal and cylinder service life
• Mechanics who know that keeping contamination out of hydraulics saves far more time than fixing it later
