Yard Hydrant Made Easy Kit

No more digging up hydrants!

Save major time and money on future yard hydrant replacements with the Yard Hydrant Made Easy™ Kit. The YHME Kit delivers all the benefits of the telescoping models at a lower cost. Instead of a telescoping casing, the YHME Kit comes with a top and bottom section only. You provide a 4” sch. 40 PVC pipe, cut to accommodate your hydrant bury depth, to serve as the casing. Simply glue the top and bottom sections of the YHME Kit to your casing pipe, and you’re ready to go.

The Model 303K is just like the 101K but with the addition of a dual check valve for backflow prevention. If you need to prevent water from the hydrant from flowing back into the water supply, then the Model 303K is what you need. All models come with a preinstalled pitless adapter to attach to your hydrant.* The YHME does not come with a hydrant installed, but we do sell some basic hydrants in our web store.

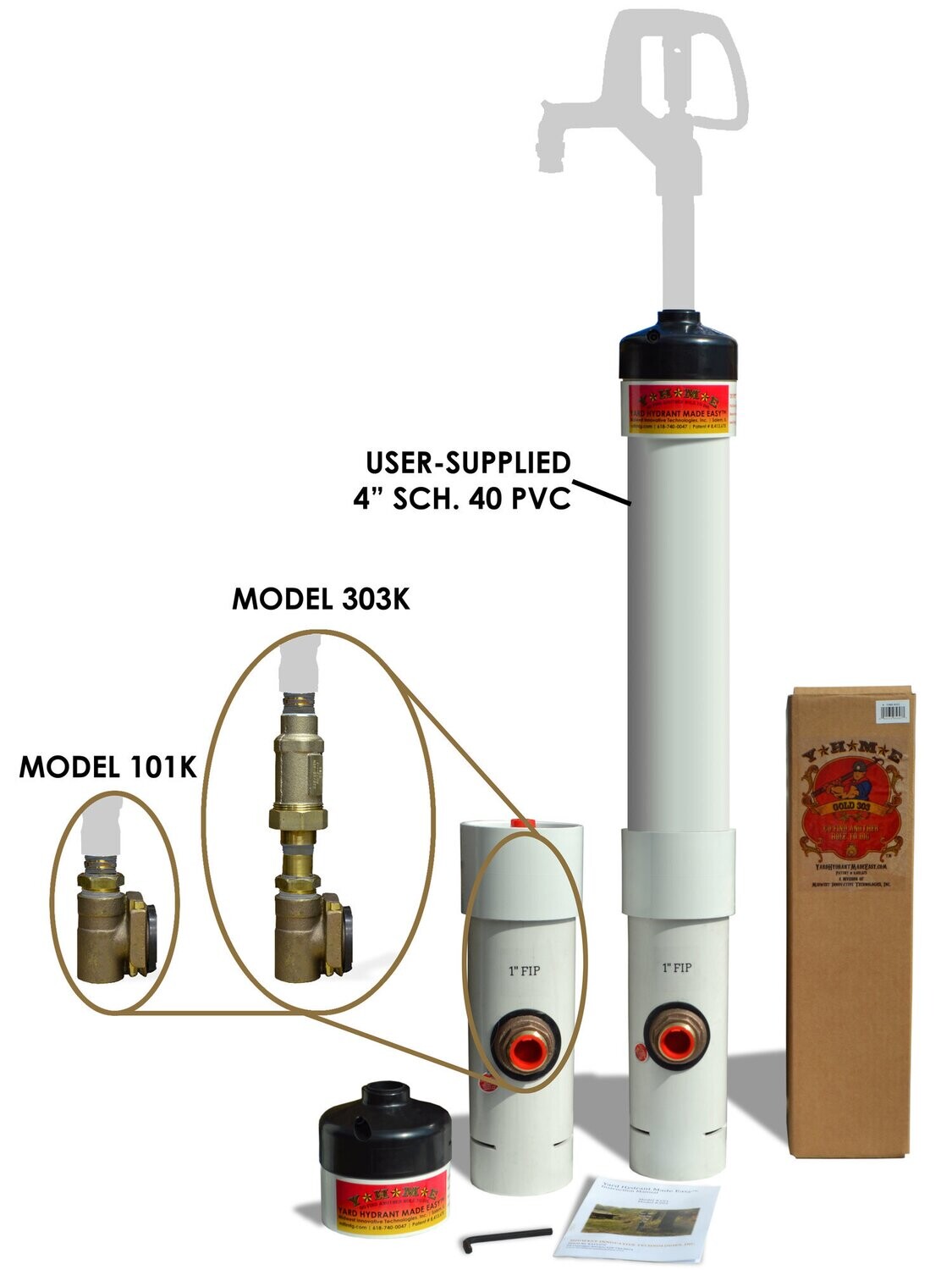

Yard Hydrant Made Easy™ Models 101K and 303K Features:

• Bottom section (pitless assembly) including:
  • Lead-free brass pitless adapter (preinstalled) to screw into your hydrant for simple slide-in/slide-out hydrant replacement
  • Filtered drainage section to keep out dirt and improve drainage reliability
  • ASSE 1024 lead-free bronze dual-check-valve backflow preventer (Model 303K)
• Top section (upper assembly) including:
  • Durable ABS top cap
  • Stainless steel hardware
• Can be installed to any bury depth; you provide the 4” sch. 40 PVC casing pipe to required length.
• Protection against corrosion from soil or livestock
• Replaceable o-ring seal (each unit ships with a spare o-ring)
• Works with standard, 3/4” frost-free yard hydrants (top cap will not fit nominal 1” hydrants).*
• Maximum operating water pressure 100 psig
