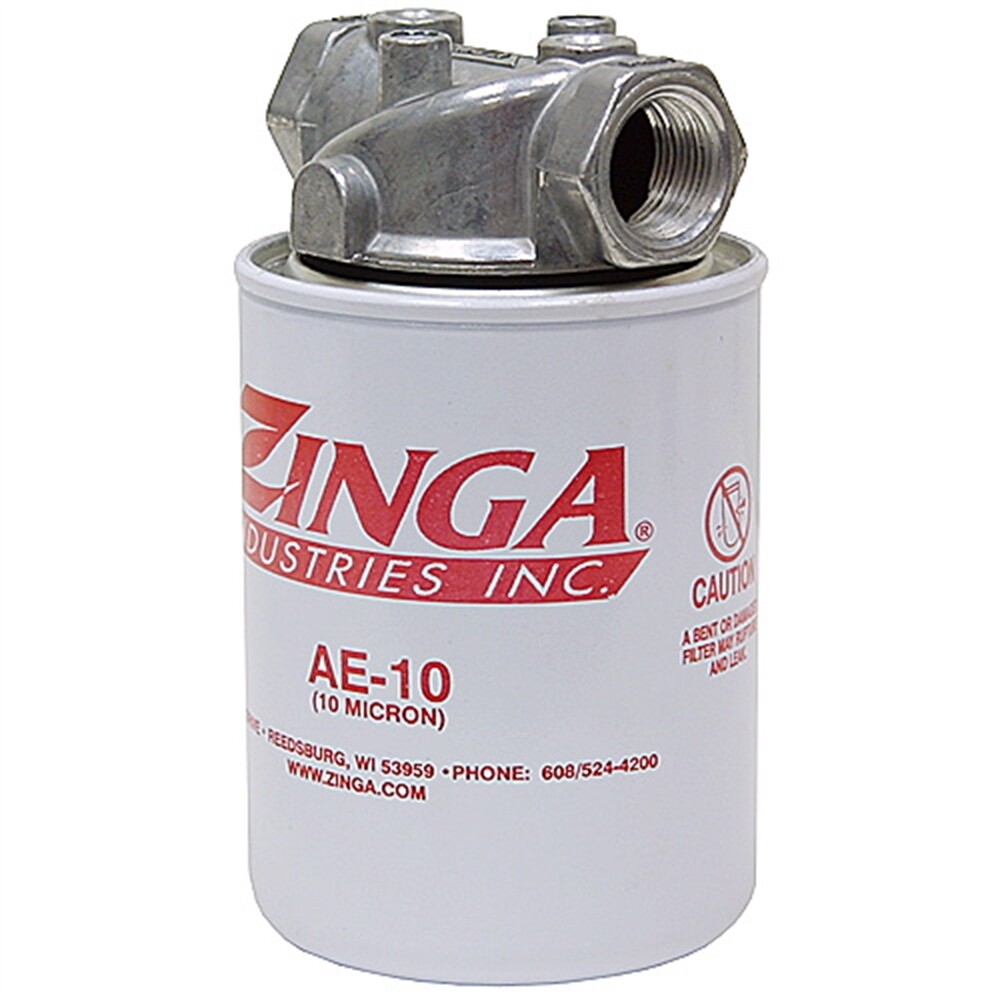

Zinga Hydraulic Return Line Filter Assy w/Head

Zinga Hydraulic Return Line Filter Assy w/Head

The 9-059 Zinga Hydraulic Return Line Filter Assy w/Head is a 25 GPM return-line hydraulic filter assembly designed to protect hydraulic systems by removing contaminants on the return side. It provides full-flow filtering up to the bypass cracking point, then partial filtering beyond, helping maintain protection even when flow demand or restriction increases. With a 10-micron rating, 3/4" NPT ports, and a built-in 25 lb bypass, it’s a durable, high-capacity option for equipment needing dependable return-line filtration.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 9-059
• Brand: Zinga
• Product Type: Hydraulic return line filter assembly w/head
• Application: Return line
• Flow Rating: 25 GPM
• Filtration Rating: 10 micron
• Max Pressure: 250 PSI
• Ports: 3/4" NPT
• Bypass: Built-in 25 lb bypass
• Filtering Behavior: Full flow filtering up to bypass cracking point; partial filtering beyond
• Dimensions: 3-3/4" × 3-1/2" × 7-1/2"
• Shipping Weight: 3 lb

Ideal For

• Hydraulic systems needing return-line filtration up to 25 GPM
• Equipment requiring 10-micron contaminant control on the return circuit
• Setups that benefit from a built-in bypass to help prevent flow starvation
• Replacing or adding a return filter assembly with head using 3/4" NPT ports
