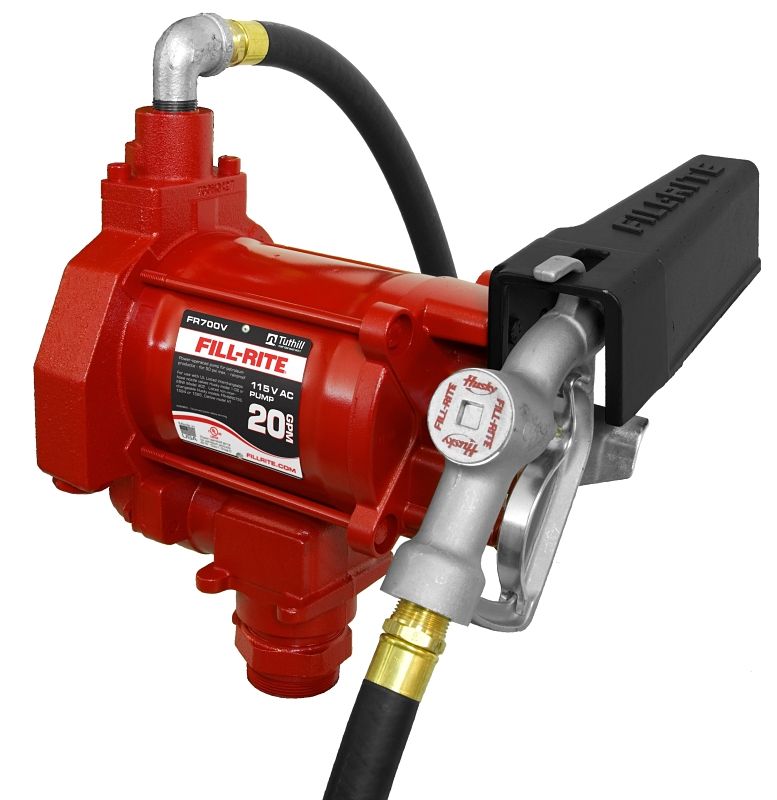

Fill-Rite SD602 Fuel Pump Kit, 115VAC, 20GPM

Fill-Rite SD602 Fuel Pump Kit, 115VAC, 20GPM

The Fill-Rite SD602 Fuel Pump Kit is a heavy-duty, high-flow transfer solution built to move fuel quickly, safely, and reliably, whether you’re filling equipment in the field or topping off tanks back at the shop. With a 20 GPM flow rate, rugged cast iron construction, and a complete ready-to-use kit, this pump is designed to handle serious fuel transfer jobs without slowing you down—or making a mess of it.

Country of Origin
Made in the U.S.A.

Key Features / Specifications

• Model / Part Number: SD602
• Brand: Fill-Rite
• Product Type: Electric fuel transfer pump kit
• Voltage: 115 VAC
• Motor: 1/3 HP, 5.5 A, 1725 RPM
• Flow Rate: Up to 20 GPM
• Duty Cycle: 30-minute duty cycle
• Pump Type: Rotary vane (iron rotor with carbon vanes)
• Material: Heavy-duty cast iron construction
• Fluid Compatibility:
  • Gasoline
  • Diesel
  • Biodiesel (up to B20)
  • E15
  • Kerosene
  • Mineral spirits
• Self-Priming: Yes
• Inlet Size: 1-1/4 in.
• Outlet Size: 3/4 in.
• Mounting: 2 in. threaded base for tank mounting
• Kit Includes:
  • 3/4 in. x 12 ft hose with static wire
  • 3/4 in. manual nozzle
  • Check valve
  • Pressure relief valve
  • Strainer
• Certifications: UL/cUL, ATEX, CE
• Dimensions: 14-1/2 in. length
• Warranty: 2 Year

Ideal For

• Fueling tractors, equipment, and fleet vehicles
• Farms and operations needing fast, reliable fuel transfer
• Stationary tanks requiring a complete pump and hose setup
• Users handling multiple fuel types with one system
• Anyone who prefers moving 20 gallons a minute instead of standing there wondering if it’s even pumping
